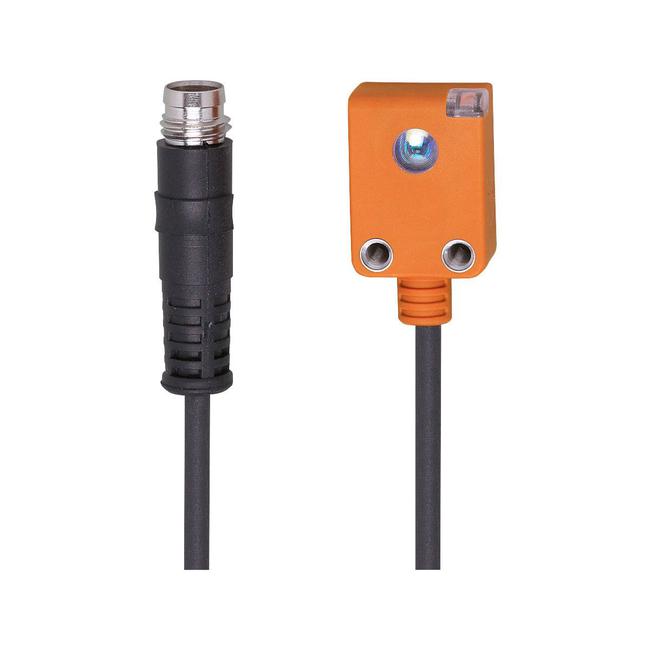

O7E200 ifm ⍾ O7E-DPKG/0,20M/AS

Through-beam sensor receiver; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Electrical design : PNP; Output function : dark-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Transmitter / receiver : receiver; Range [m] : 0...1.5; Range adjustable : no; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PA; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x M8; Locking: snap-fit

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

10; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65

Weight

14.5 g

Dimensions

20.3 x 15 x 9 mm
