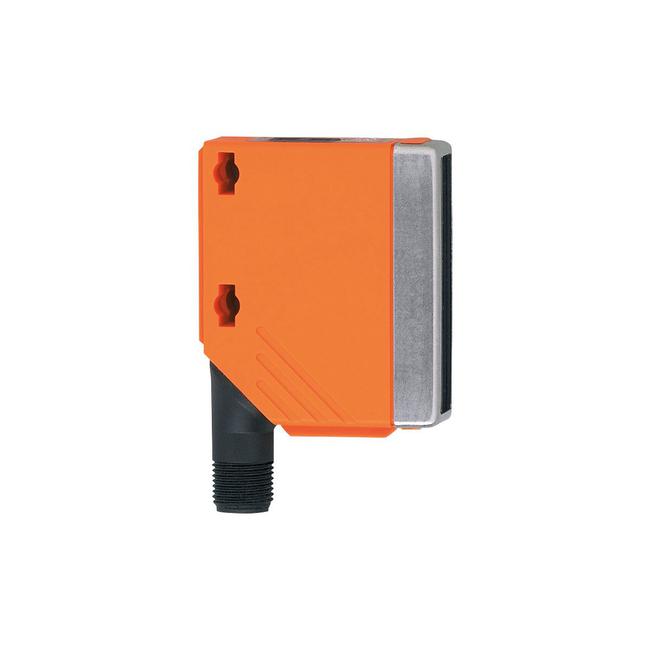

O5S700 ifm ⍾ O5SLOOKG/US100

Through-beam laser sensor transmitter; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 655; Transmitter / receiver : transmitter; Range [m] : < 60; Range adjustable : no; Max. light spot diameter [mm] : 150; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -10...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPU; Lens material : PMMA; Lens alignment : side lens

Type

Laser sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

13 mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 67

Weight

67 g

Dimensions

56 x 18.2 x 46.8 mm
