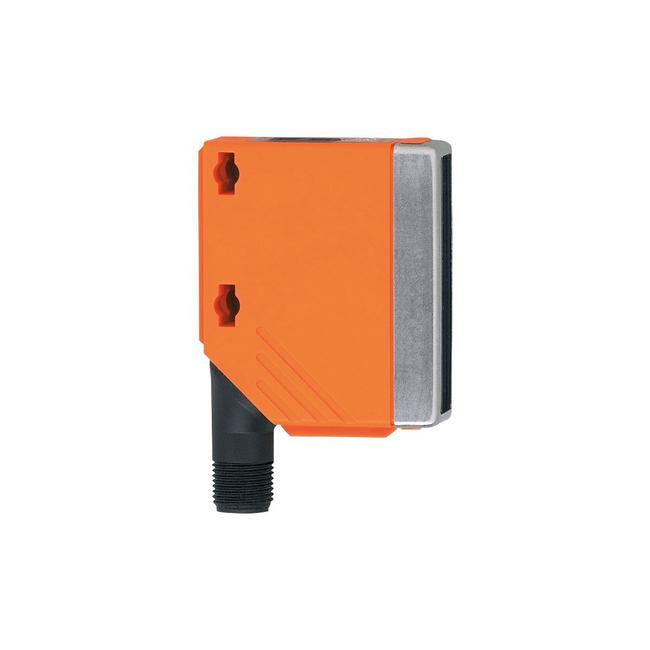

O5P203 ifm ⍾ O5P-HPKG/US100

Retro-reflective sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.1...7; (Prismatic reflector Ø 80 E20005); Range adjustable : no; Max. light spot diameter [mm] : 175; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPE; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

62.5 g

Dimensions

56 x 18.2 x 46.8 mm
