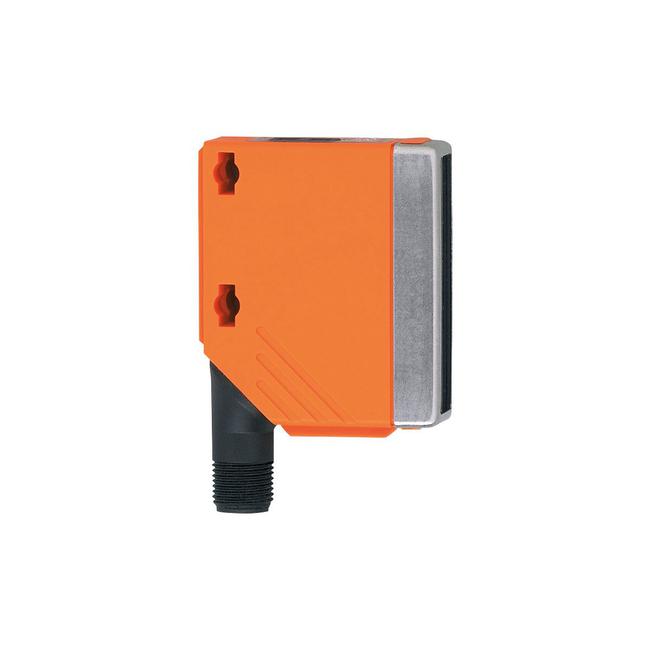

O5K500 ifm ⍾ O5K-FAKG/US100

Contrast sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; green light; blue light; Wave length [nm] : 625; 525; 465; Electrical design : PNP/NPN; (automatic load detection PNP/NPN); Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 10000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 18...22; Max. light spot width [mm] : 1.5; Max. light spot height [mm] : 5; Response time [ms] : < 0.05; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPU / PC; Lens material : front lens:PMMA; Lens alignment : side lens; Teach function : yes; Electronic lock : yes; Connector: 1 x M12

Type

Photoelectric sensors for specific applications

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

50; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

79.5 g

Dimensions

56 x 18.2 x 46.8 mm
