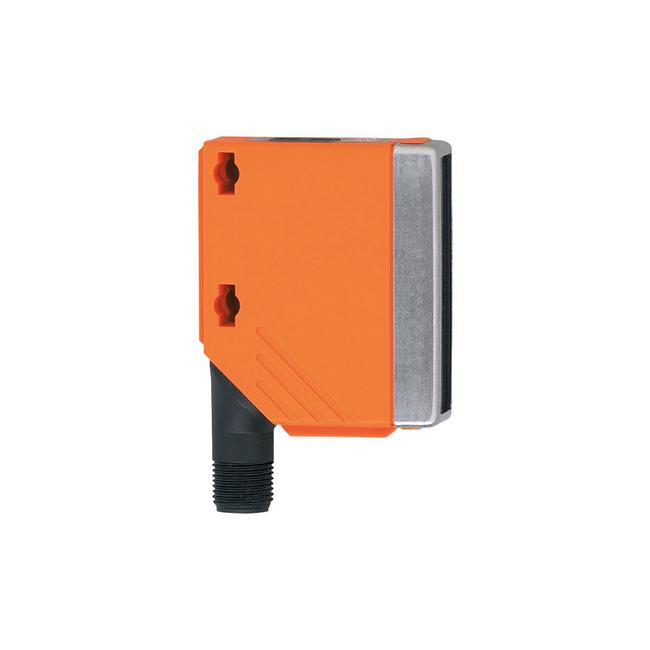

O5H201 ifm ⍾ O5H-HNKG/US100
Diffuse reflection sensor with background suppression; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : NPN; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 50...1400; (white paper 200 x 200 mm 90% remission); Range adjustable : yes; Max. light spot diameter [mm] : 50; Light spot dimensions refer to : Range; Background suppression available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPE; Lens material : PMMA; Lens alignment : side lens; Operating elements : potentiometer
- Connection
- Connector: 1 x M12
- No. of inputs/outputs
- Number of digital outputs: 2
- Current consumption
- 25 mA
- Voltage supply
- 24 V
- Display
- switching status: 1 x LED, yellow
- Degree of protection
- IP 65
- Weight
- 62.5 g
- Dimensions
- 56 x 18.2 x 46.8 mm
