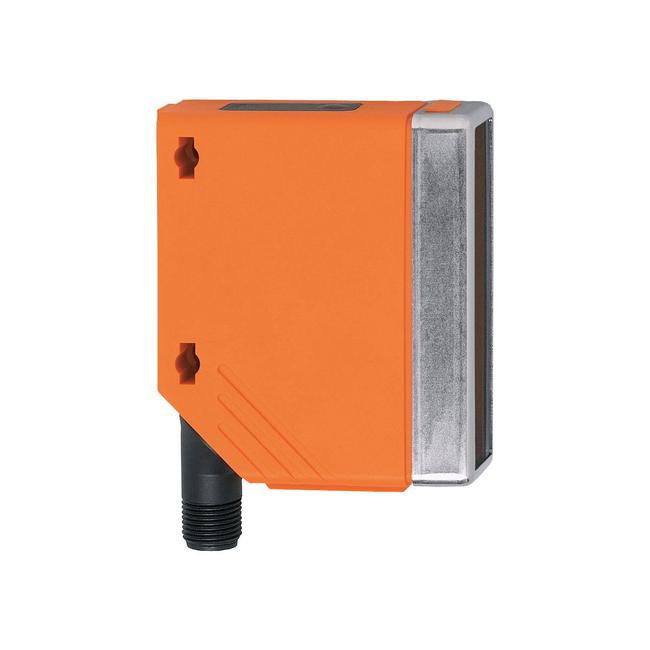

O4S500 ifm ⍾ O4S-OOKG/US100

Through-beam sensor transmitter; Operating voltage [V] : 10...36 DC; ("supply class 2" to cULus); Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Overload protection : yes; Transmitter / receiver : transmitter; Range [m] : 0...80; Range adjustable : no; Max. light spot diameter [mm] : 2400; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPE; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital inputs: 1; Number of digital outputs: 2

Current consumption

20 mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 67

Weight

122 g

Dimensions

74.4 x 27 x 63.8 mm
