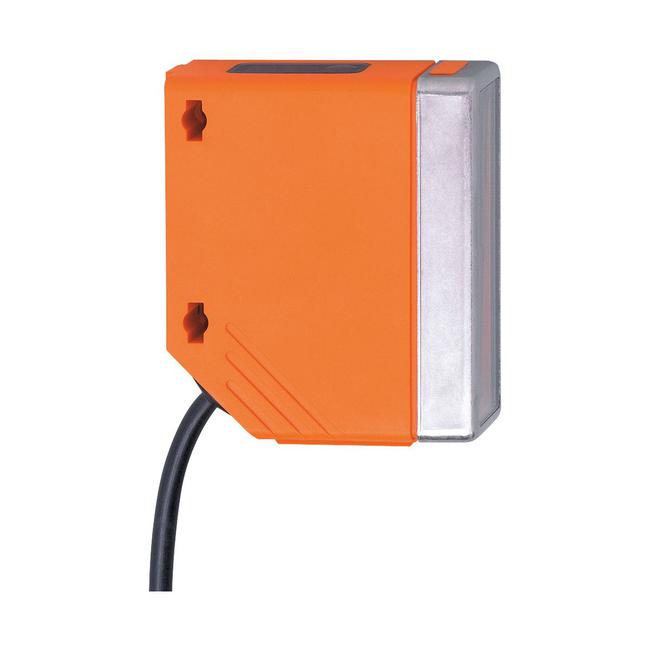

O4P501 ifm ⍾ O4P-FPKG/2M
Retro-reflective sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 2000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.3...22; (Prismatic reflector Ø 80 E20005); Range adjustable : yes; Max. light spot diameter [mm] : 660; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPE; Lens material : PMMA; Lens alignment : side lens; Teach function : yes; Electronic lock : yes
- Connection
- Cable: 2 m, PUR; 3 x 0.34 mm²
- No. of inputs/outputs
- Number of digital inputs: 1; Number of digital outputs: 2
- Current consumption
- 20 mA
- Voltage supply
- 24 V
- Display
- switching status: 1 x LED, yellow
- Degree of protection
- IP 67
- Weight
- 207.5 g
- Dimensions
- 74.4 x 27 x 63.8 mm
