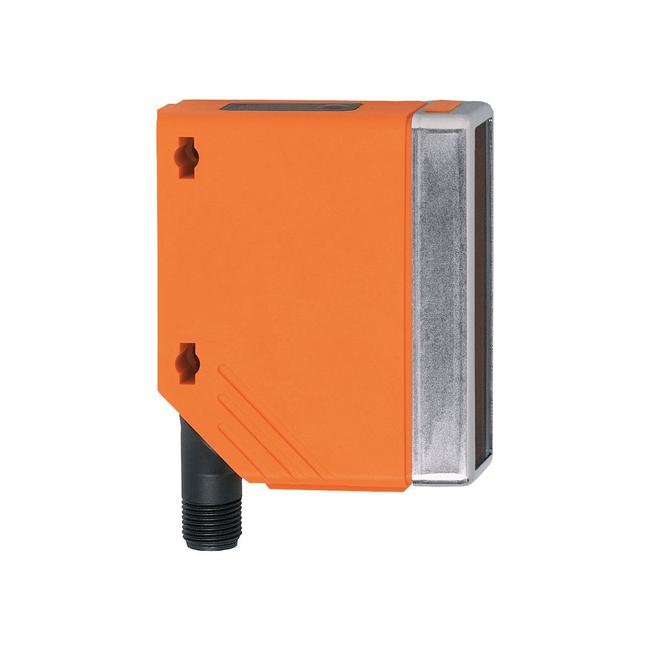

O4H200 ifm ⍾ O4H-HPKG/US100

Diffuse reflection sensor with background suppression; Operating voltage [V] : 10...36 DC; ("supply class 2" to cULus); Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 100...2000; (white paper 200 x 200 mm 90% remission); Range on white object (90 % remission) [mm] : 100...2000; Range on grey object (18 % remission) [mm] : 100...1100; Range on black object (6 % remission) [mm] : 100...700; Range adjustable : yes; Max. light spot diameter [mm] : 100; Light spot dimensions refer to : at maximum range; Background suppression available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPE / PC; Lens material : PMMA; Lens alignment : side lens; Operating elements : potentiometer

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital inputs: 1; Number of digital outputs: 2

Current consumption

25 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65

Weight

121.5 g

Dimensions

74.4 x 27 x 63.8 mm
