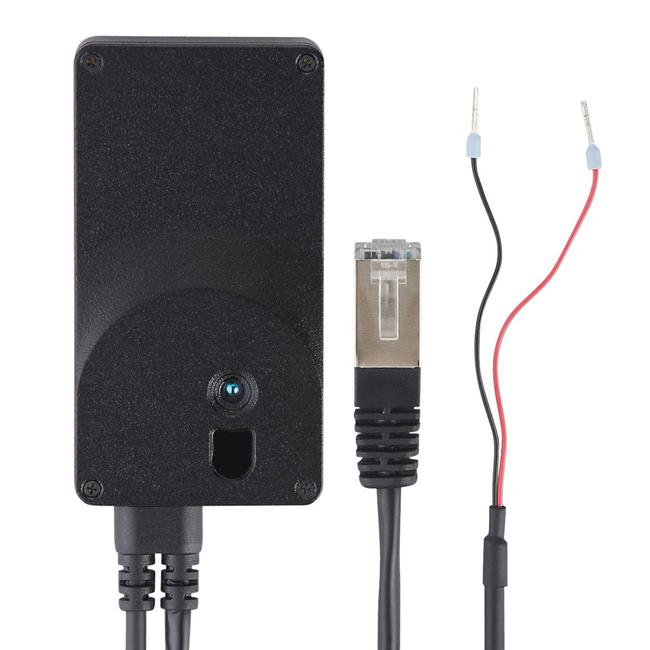

O3X100 ifm ⍾ O3XIOOKG/E1/GM/S/60

3D camera; Operating voltage [V] : 20.4...28.8 DC; (EN 61131-2); Power consumption [W] : 3.7; Protection class : III; Type of light : infrared light; Wave length [nm] : 850; Image sensor : PMD 3D ToF-Chip; Internal lighting : yes; (infrared: 850 nm invisible radiation LED); Operating distance [mm] : 50...3000; Note on operating distance : object size: 200 x 200 mm | reflectivity: 18 %; Image resolution 3D [px] : 224 x 172; Angle of aperture 3D [°] : 60 x 45; Max. reading rate [Hz] : 20; Measuring range [m] : < 30; (depending on settings, object size, and reflectivity); Parameter setting options : via PC with ifm Vision Assistant or XML-RPC; Communication interface : Ethernet; Usage type : parameter setting; data transmission; Number of Ethernet interfaces : 1; Transmission standard : 10Base-T; 100Base-TX; Transmission rate : 10; 100; Protocol : TCP/IP; Factory settings : IP address: 192.168.0.69 | subnet mask: 255.255.255.0 | gateway IP address: 192.168.0.201; Ambient temperature [°C] : -10...40; Note on ambient temperature : Housing: < 45° C | see operating instructions; Storage temperature [°C] : -40...85; Max. immunity to extraneous light [klx] : 8; Materials : housing: diecast zinc; front lens: PMMA

Type

3D cameras

Connection

Connector: 1 x RJ45

No. of inputs/outputs

Number of digital inputs: 1; Number of digital outputs: 2

Current consumption

< 500; (peak current pulsed; typical value: 160) mA

Voltage supply

24 V

Display

function: 2 x LED, green Ethernet operation | switching status: 2 x LED, yellow OUT 1 OUT 2

Degree of protection

IP 50

Weight

267.5 g

Dimensions

80 x 43.5 x 21 mm
