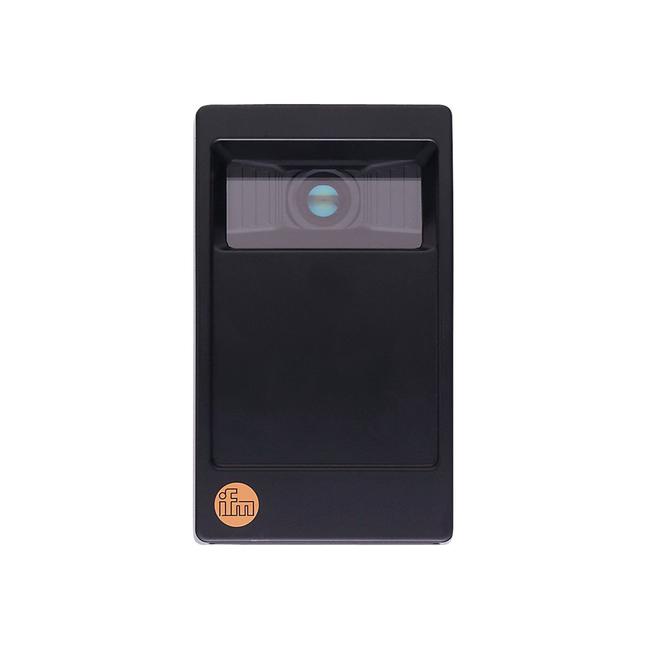

O3M161 ifm ⍾ O3MXOOKG/CAN/E3/GM/95

3D sensor for mobile applications; Operating voltage [V] : 9...32 DC; Power consumption [W] : 3.6; Protection class : III; Type of light : infrared light; Image sensor : PMD 3D ToF-Chip; Image resolution 3D [px] : 64 x 16; Angle of aperture 3D [°] : 95 x 32; Image repetition frequency 3D [Hz] : 25 / 33 / 50; Parameter setting options : via PC with ifm Vision Assistant; Communication interface : CAN; Ethernet; Number of CAN interfaces : 1; Number of Ethernet interfaces : 1; Note on interfaces : Output of preprocessed data via CAN interface; Transmission rate : 250 (125...1000) kBaud; Protocol : CANopen; UDS; Factory settings : J1939 interface: Default | device address (ECU): 239 | UDS interface: 500 (125...1000) kBaud; Usage type : parameter setting; data transmission; Protocol : UDP/IP; Factory settings : IP address: 192.168.1.1 | subnet mask: 255.255.255.0 | target IP address: 255.255.255.255 | target port: 42000; Usage type : data transmission; Ambient temperature [°C] : -40...85; Note on ambient temperature : with high image repetition frequency of 25 Hz; Storage temperature [°C] : -40...105; Max. immunity to extraneous light [klx] : 120; Materials : diecast aluminium; Items supplied : Protective covers; Connector: 1 x M12

Type

3D sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital inputs: 1; Number of digital outputs: 2

Current consumption

< 400 mA

Voltage supply

24 V

Display

function: 2 x LED, green Ethernet operation | switching status: 2 x LED, yellow OUT 1 OUT 2

Degree of protection

IP 67; IP 69K; (with mounted connectors or protective caps)

Weight

1022 g

Dimensions

143.8 x 85 x 70.1 mm
