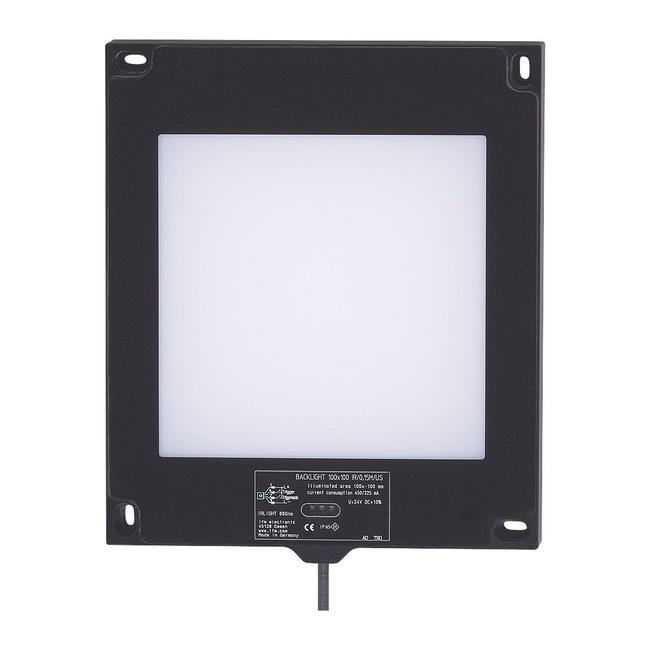

O2D908 ifm ⍾ BACKLIGHT 100X100 IR/0,15M/US

External illumination; Operating voltage tolerance [%] : -10...10; Operating voltage [V] : 24 DC; Protection class : III; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Trigger : 24 V PNP (IEC 61131-1); Overload protection : yes; Ambient temperature [°C] : 0...50; Overheat protection : yes; Materials : aluminium; Lens material : PMMA

Type

Illumination

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital inputs: 2; Number of digital outputs: 5

Current consumption

operating mode "permanent operation": 450; operating mode "high light intensity": 250 mA

Voltage supply

24 V

Display

illumination status: 1 x LED, yellow | operation: 1 x LED, green | excess temperature / overload: 1 x LED, red

Degree of protection

IP 65

Weight

339 g

Dimensions

156 x 133 x 9.2 mm
