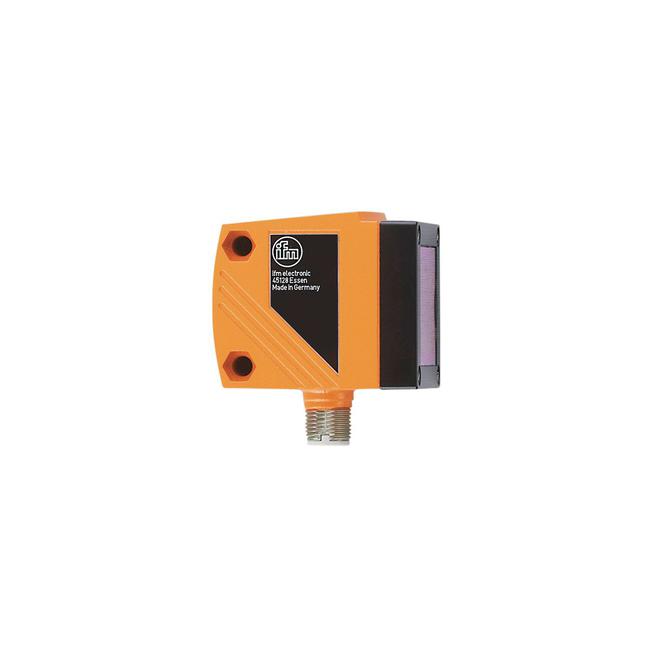

O1D106 ifm ⍾ O1DLF3KG

Photoelectric distance sensor; Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Typ. lifetime [h] : 50000; Total number of outputs : 2; Electrical design : PNP; Number of digital outputs : 2; Output function : normally open / normally closed; (programmable); Max. current load per output [mA] : 200; Number of analogue outputs : 1; Analogue current output [mA] : 4...20; (scalable IEC 61131-2); Max. load [Ω] : 250; Analogue voltage output [V] : 0...10; (scalable IEC 61131-2); Min. load resistance [Ω] : 5000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Max. light spot width [mm] : 150; Max. light spot height [mm] : 150; Light spot dimensions refer to : 75 m; Background suppression [m] : 75...150; Measuring range [m] : 1...75; (Reflector E21159); Sampling rate [Hz] : 1...33; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 2; Min. process cycle time [ms] : 6; Supported DeviceIDs : Type of operation: DeviceID | Default: 810; Ambient temperature [°C] : -10...60; Housing : rectangular; Materials : housing: diecast zinc; front lens: glass; LED window: PC; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 150 mA

Voltage supply

24 V

Display

switching status: 2 x LED, yellow | operation: LED, green | distance value, programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

312 g

Dimensions

59 x 42 x 52 mm
