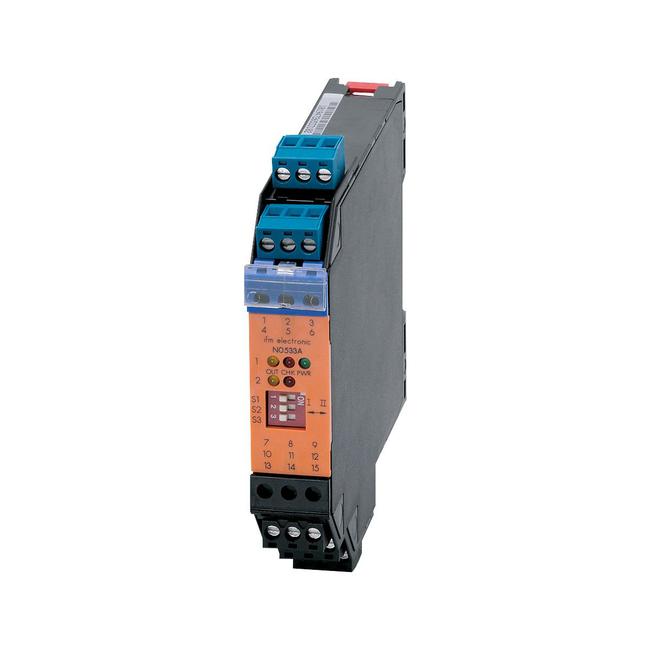

N0530A ifm ⍾ NV1121/24VDC/RL/1D/1G
Switching amplifiers for Namur sensors; Operating voltage tolerance [%] : -15...25; Operating voltage [V] : 24 DC; Number of channels : 1; Electrical design : relay; (1 changeover contact); Contact rating : 253 V AC / 2 A / cos phi > 0,7 // 40 V DC / 2 A; (ohmic resistance); Switching frequency DC [Hz] : 10; Ambient temperature [°C] : -20...60; Switching cycles mechanical : 10 million
- Connection
- terminals: ...2.5 mm²
- No. of inputs/outputs
- Number of digital outputs: 2
- Current consumption
- < 23 mA
- Voltage supply
- 24 V
- Display
- switching status: LED, yellow | operation: LED, green | function: LED, red
- Degree of protection
- IP 20
- Weight
- 164.5 g
- Dimensions
- Ø 15 / L = 64.5 mm
