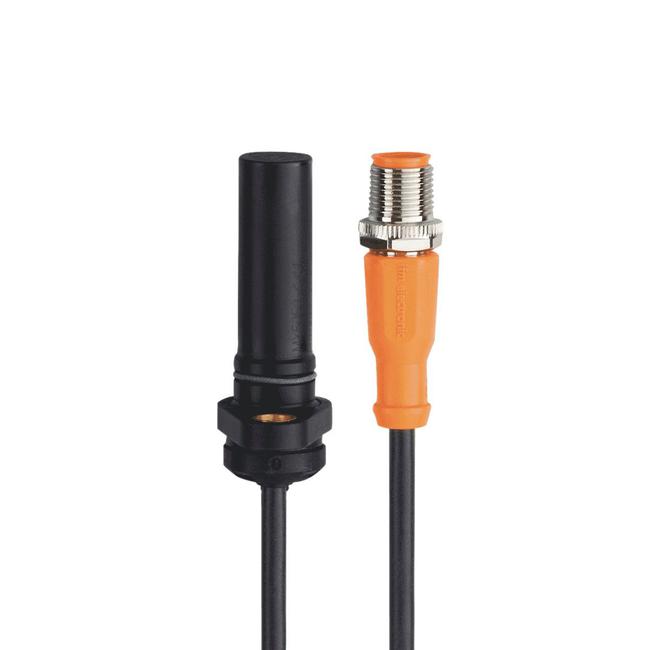

MX5050 ifm ⍾ MXD41,7/BPKG/H/0,5/ZH/US

Speed sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 1; Max. leakage current [mA] : 0.1; Permanent current rating of switching output DC [mA] : 50; Short-time current rating of switching output [mA] : 50; Switching frequency DC [Hz] : 1...15000; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.); Real sensing range Sr [mm] : 1.7 ± 10 %; Operating distance [mm] : 1.38; Ambient temperature [°C] : -32...85; Materials : brass; PA; O-ring: FKM; Tightening torque [Nm] : 7; Toothed wheel module [mm] : 1.25; Installation length [mm] : 45

Type

Magnetic sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 40 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65; IP 68; IP 69K

Weight

49.8 g

Dimensions

Ø 15 / L = 60 mm
