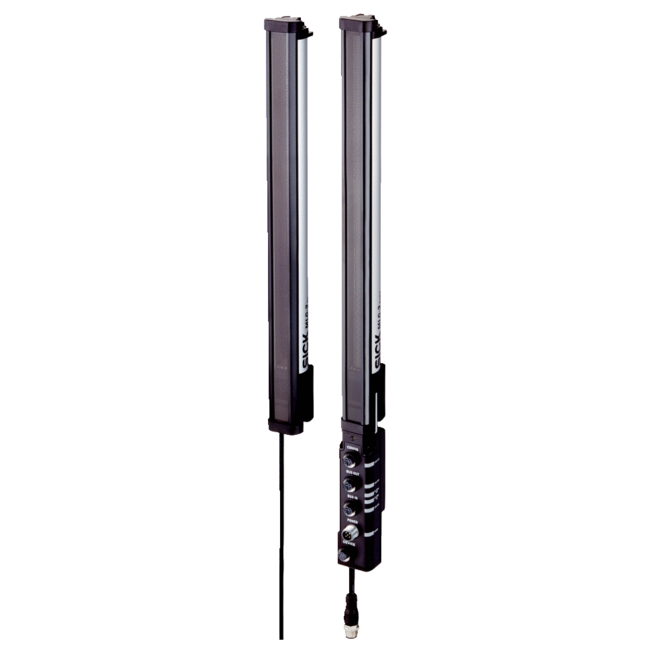

MLG10N-1640H10501 SICK1221615MLG10N1640H10501

Features: Device version: ProNet - Advanced functionality incl. feldbus; Sensor principle: Sender/receiver; Minimum detectable object (MDO): 10 mm, 14 mm 1) 2) 3); Beam separation: 10 mm; Number of beams: 165; Detection height: 1,640 mm; Software features (default)Q1Presence detection: Software features (default); Operating modeStandard✔Transparent✔Dust- and sunlight-resistant✔: Operating mode; FunctionCross beam✔Beam blanking✔High-speed scan✔High measurement accuracy✔: Function; ApplicationsSwitching outputObject recognition/object widthObject recognitionHeight classificationHole detection/hole sizeOutside dimension/inside dimensionObject positionHole positionZone definitionData interfaceObject recognitionHole detectionObject height measurementMeasurement of external dimensionMeasurement of inside dimensionMeasurement of object positionMeasurement of hole position: Applications; Included with delivery: 1 × sender1 × receiver4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)1 × Quick Start Guide1 x Fieldbus module; Mechanics/electronics: Light source: LED, Infrared light; Wave length: 850 nm; Supply voltage Vs: DC 18 V ... 30 V 1); Power consumption sender: 63.25 mA 2); Power consumption receiver: 153 mA 2); Ripple: < 5 Vpp; Output current Imax.: 100 mA; Output load capacitive: 100 nF; Output load inductive: 1 H; Initialization time: < 1 s; Switching output: PUSH/PULL; Connection type: Male connector M12, 5-pin, 0.22 mConnector M12, 12-pin, 0.21 m; Housing material: Aluminum; Indication: LED; Enclosure rating: IP65, IP67 3); Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Protection class: III; Weight: 3.549 kg; Front screen: PMMA; Option: None; Performance: Maximum range: 7 m 1); Minimum range: ≥ 0 m; Operating range: 5 m; Response time: 14 ms 2); Communication interface: EtherNet/IP™✔: EtherNet/IP™; Digital outputQ1Number1: Digital output; Ambient data: EMC: EN 60947-5-2; Ambient operating temperature: –30 °C +55 °C; Ambient storage temperature: –40 °C +70 °C; Ambient light immunity: Direct: 150,000 lx 1)Indirect: 200,000 lx 2); Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g; Shock load: Continuous shocks 10 g, 16 ms, 1000 shocksSingle shocks 15 g, 11 ms 3 per axle; UL File No.: NRKH.E181493 (Sensor); Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
