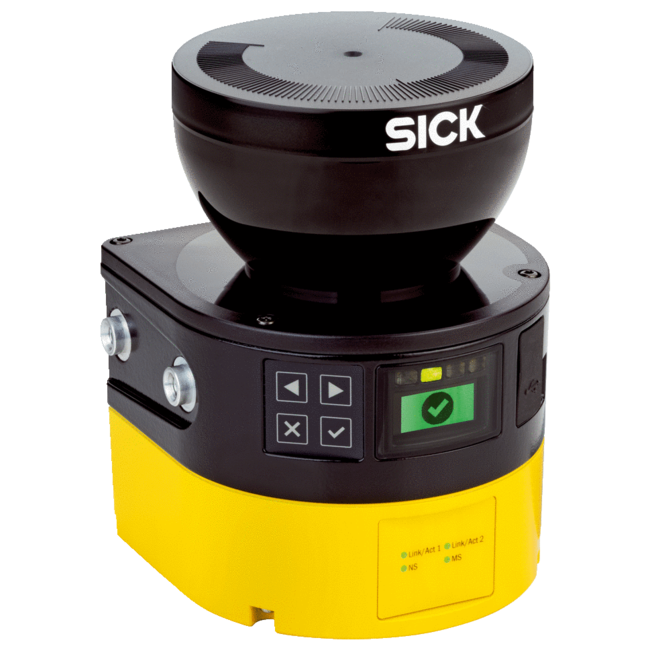

MICS3-ABAZ40PZ1P01 SICK1100404MICS3ABAZ40PZ1P01

Features: Protective field range: 4 m; Warning field range: 40 m; Number of simultaneously monitored fields: ≤ 4 1); Number of fields: 8; Number of monitoring cases: 8; Scanning angle: 275°; Resolution (can be configured): 30 mm40 mm50 mm70 mm150 mm200 mm; Angular resolution: 0.39°; Response time: ≥ 95 ms; Protective field supplement: 65 mm; Safety-related parameters: Type: Type 3 (IEC 61496); Safety integrity level: SIL2 (IEC 61508)SILCL2 (EN 62061); Category: Category 3 (EN ISO 13849); Performance level: PL d (EN ISO 13849); PFHD (mean probability of a dangerous failure per hour): 8.0 x 10-8 (EN ISO 13849); TM (mission time): 20 years (EN ISO 13849); Safe state in the event of a fault: The safety outputs via the network are logic 0.; Functions: Restart interlock: ✔; Multiple sampling: ✔; Monitoring case switching: ✔; Simultaneous monitoring: ✔; Static protective field switching: ✔; Safe contour detection: ✔; Contour as a reference: ✔; Integrated configuration memory: ✔; Measured data output: Via Ethernet; Interfaces: Connection typeVoltage supply1 x male connector, M12, 4-pin, A-codedFieldbus, industrial network2 x M12 female connectors, 4-pin, D-coded: Connection type; OutputsOSSD pairs0Safety outputs via network4: Outputs; Configuration method: PC with Safety Designer (Configuration and Diagnostic Software); Configuration and diagnostics interfaceUSB 2.0, Mini-USB, Ethernet: Configuration and diagnostics interface; Fieldbus, industrial networkPROFINETProtocolPROFIsafeSupported protocol versionsPROFINET specification V2.3PROFIsafe profile in accordance with specification V2.6.1PROFIsafe profile in accordance with specification V2.4GSDMLAccording to GSDML specification V2.33Cycle time1 ms, 2 ms, 4 ms, 8 ms, 16 ms …ConformanceConformance Class CNetwork managementSNMPMIB-2LLDP in accordance with IEEE 802.1ABMRP client supportNet loadNet load class III in accordance with security level 1 testSwitch properties2 port real-time switch compliant with IEEE 802Port properties100Base-TXAuto-negotiationAuto-crossover (MDIX)Auto-polarityDiagnosticsI&M data sets 0 … 5PROFINET alarmsAdditional servicesPROFIenergyF_iPar_CRCAcyclic read-/write services for communication via TCIAdditional interfacesTCP/IP communication via port 9000: Fieldbus, industrial network; Display elements: Graphic color display, LEDs; Electrical data: Protection class: III (EN 61140); Supply voltage Vs: 24 V DC (16.8 V DC ... 30 V DC); Power consumption: 7 W (without output load); Mechanical data: Dimensions (W x H x D): 112 mm x 150.8 mm x 111.1 mm (without system plug); Weight: 1.45 kg; Housing material: Aluminum; Housing color: RAL 1021 (yellow), RAL 9005 (black); Optics cover material: Polycarbonate; Optics cover surface finish: Outside with scratch-resistant coating; Ambient data: Enclosure rating: IP65 (IEC 60529); Ambient light immunity≤ 3,000 lx (IEC 61496-3): Ambient light immunity; Ambient operating temperature: –10 °C ... +50 °C; Storage temperature: –25 °C ... +70 °C; Vibration resistance: 0.35 mm, 10 Hz ... 60 Hz (IEC 60068-2-6, IEC 61496-1, IEC 61496-3)5 g, 60 Hz ... 150 Hz (IEC 60068-2-6, IEC 61496-1, IEC 61496-3); Shock resistanceContinuous shock10 g, 16 ms (IEC 60068-2-27, IEC 61496-3): Shock resistance; EMC: IEC 61496-1IEC 61000-6-2IEC 61000-6-4; Other information: Type of light: Pulsed laser diode; Wave length: 845 nm; Detectable remission: 1.8% to several 1000%; Laser class: 1M (21 CFR 1040.10 and 1040.11, IEC 60825-1); Classifications: ECl@ss 5.0: 27272705; ECl@ss 5.1.4: 27272705; ECl@ss 6.0: 27272705; ECl@ss 6.2: 27272705; ECl@ss 7.0: 27272705; ECl@ss 8.0: 27272705; ECl@ss 8.1: 27272705; ECl@ss 9.0: 27272705; ECl@ss 10.0: 27272705; ECl@ss 11.0: 27272705; ETIM 5.0: EC002550; ETIM 6.0: EC002550; ETIM 7.0: EC002550; UNSPSC 16.0901: 39121528
