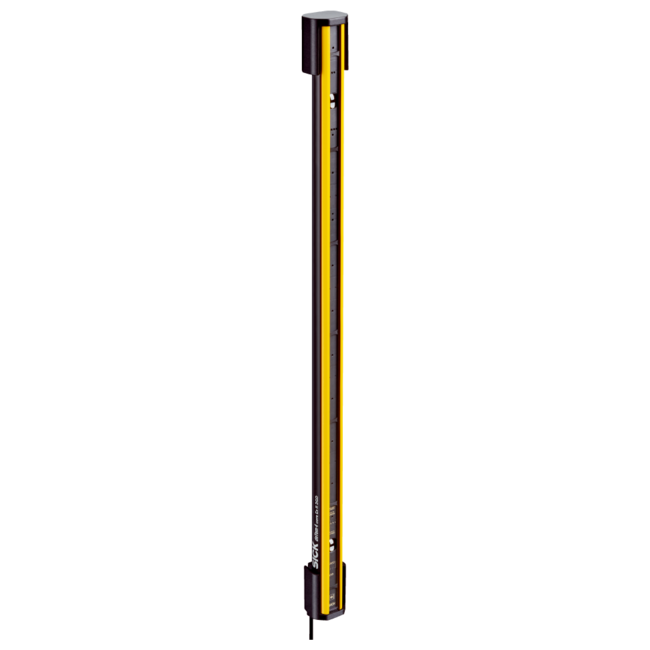

M4C-SX0250HA10 SICK1092040M4CSX0250HA10

Features: Application: Explosive areas; Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 GcATEX for dust: II 3D Ex tc IIIC T135°C Dc; Functional principle: Sender/receiver system; System part: Sender; Scanning range: 90 m; Dimension of the light pathTypical10 m ... 90 m: Dimension of the light path; Number of beams: 2; Beam separation: 500 mm; Response time: 20 ms; Synchronization: Optical synchronisation; Items supplied: Sender; Safety-related parameters: Type: Type 4 (IEC 61496-1); Safety integrity level: SIL3 (IEC 61508)SILCL3 (IEC 62061); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 3 x 10-9; TM (mission time): 20 years (ISO 13849-1); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Functions: Protective operation: ✔; Interfaces: System connectionMale connector M12, 5-pin: System connection; Display elements: LEDs; Fieldbus, industrial networkIntegration via Flexi Soft safety controllerCANopen 1)DeviceNet™EtherCAT®EtherNet/IP™Modbus TCPPROFIBUS DPPROFINET: Fieldbus, industrial network; Electrical data: Protection class: III (IEC 61140); Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC) 1); Residual ripple: ≤ 10 % 2); Power consumption: ≤ 50 mA; Power consumption: ≤ 1.44 W (DC); Mechanical data: Dimensions: See dimensional drawing; Housing cross-section: 38.7 mm x 45.6 mm; MaterialHousingAluminum extruded profile: Material; Weight: 560 g (± 50 g); Bending radiusStationary position> 12 x cable diameterFlexible use> 15 x cable diameter: Bending radius; Ambient data: Enclosure rating: IP65 (IEC 60529)IP67 (IEC 60529); Ambient operating temperature: 0 °C ... +55 °C; Storage temperature: –30 °C ... +70 °C; Air humidity: 15 % ... 95 %, Non-condensing; Vibration resistance: 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6); Shock resistance: 10 g, 16 ms (IEC 60068-2-27); Other information: Type of light: Near-infrared (NIR), invisible; Classifications: ECl@ss 5.0: 27272703; ECl@ss 5.1.4: 27272703; ECl@ss 6.0: 27272703; ECl@ss 6.2: 27272703; ECl@ss 7.0: 27272703; ECl@ss 8.0: 27272703; ECl@ss 8.1: 27272703; ECl@ss 9.0: 27272703; ECl@ss 10.0: 27272703; ECl@ss 11.0: 27272703; ETIM 5.0: EC001832; ETIM 6.0: EC001832; ETIM 7.0: EC001832; UNSPSC 16.0901: 46171620
