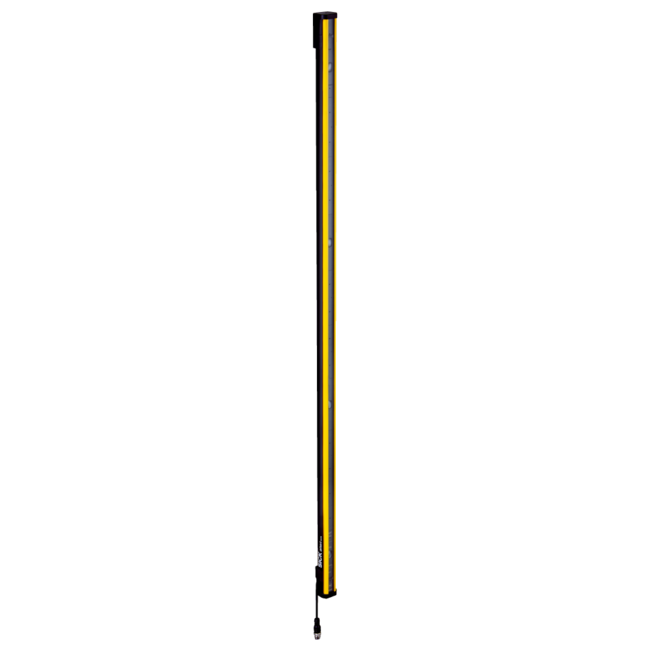

M4C-EA04300A10 SICK1082692M4CEA04300A10

Features: Application: Normal industrial environment; Functional principle: Sender/receiver system; System part: Receiver; Number of beams: 4; Beam separation: 300 mm; Response time: 20 ms; Synchronization: Optical synchronisation; Items supplied: ReceiverSafety instructionMounting instructionsOperating instructions for download; Safety-related parameters: Type: Type 4 (IEC 61496-1); Safety integrity level: SIL3 (IEC 61508)SILCL3 (IEC 62061); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 3 x 10-9; TM (mission time): 20 years (ISO 13849-1); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Interfaces: System connectionMale connector M12, 5-pinFlexi Loop compatible M12 male connector✔Permitted cable length50 m: System connection; Display elements: LEDs; Fieldbus, industrial networkIntegration via Flexi Soft safety controllerCANopen 1)DeviceNet™EtherCAT®EtherNet/IP™Modbus TCPPROFIBUS DPPROFINET: Fieldbus, industrial network; Electrical data: Protection class: III (IEC 61140) 1); Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC) 2); Residual ripple: ≤ 10 % 3); Power consumption: ≤ 150 mA; Power consumption: ≤ 4.32 W (DC); Output signal switching devices (OSSDs)2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4)ON state, switching voltage HIGH24 V DC (VS – 2.25 V DC ... VS)OFF state, switching voltage LOW≤ 2 V DCCurrent-carrying capacity per OSSD≤ 300 mA: Output signal switching devices (OSSDs); Mechanical data: Dimensions: See dimensional drawing; Housing cross-section: 31 mm x 34 mm; MaterialHousingAluminum extruded profileFront screenPolycarbonate, scratch-resistant coating: Material; Weight: 880 g (± 50 g); Bending radiusStationary position> 12 x cable diameterFlexible use> 15 x cable diameter: Bending radius; Ambient data: Enclosure rating: IP65 (IEC 60529)IP67 (IEC 60529); Ambient operating temperature: –30 °C ... +55 °C; Storage temperature: –30 °C ... +70 °C; Air humidity: 15 % ... 95 %, Non-condensing; Vibration resistance: 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6); Shock resistance: 10 g, 16 ms (IEC 60068-2-27); Classifications: ECl@ss 5.0: 27272703; ECl@ss 5.1.4: 27272703; ECl@ss 6.0: 27272703; ECl@ss 6.2: 27272703; ECl@ss 7.0: 27272703; ECl@ss 8.0: 27272703; ECl@ss 8.1: 27272703; ECl@ss 9.0: 27272703; ECl@ss 10.0: 27272703; ECl@ss 11.0: 27272703; ETIM 5.0: EC001832; ETIM 6.0: EC001832; ETIM 7.0: EC001832; UNSPSC 16.0901: 46171620
