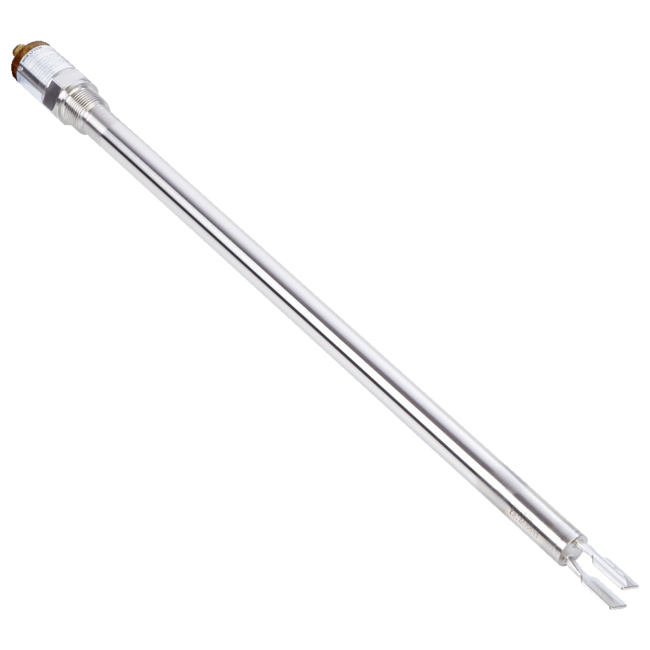

LFV230-XXSGACPV1000 SICK6052442LFV230XXSGACPV1000

Features: Medium: Fluids; Measurement: Switch; Probe length: 1,000 mm; Process pressure: –1 bar ... 64 bar; Process temperature: –40 °C ... +100 °C; Fill material density: 0.7 g/cm³ ... 2.5 g/cm³; Performance: Accuracy of sensor element: ± 2 mm; Reproducibility: ≤ 1 mm; Viscosity: 0.1 mPas ... 10,000 mPas; Resolution: ≤ 1 mm; Response time: 500 ms; MTBF: 1,3*10^7 h; Electronics: Supply voltage: 20 V AC/DC ... 253 V AC/DC; Power consumption: ≤ 4.2 mA; Initialization time: < 3 s; Connection type: Valve plug DIN 43650; Output signal: Non-contact switch; Hysteresis: 2 mm; Inductive load: ≤ 1 H; Capacitive load: 100 nF; Enclosure rating: IP65; Temperature drift: 0.03 mm/K; Mechanics: Wetted parts: Stainless steel 1.4404; Process connection: G 1 A PN 64; Housing material: Stainless steel 1.4404, PEI; Ambient data: Ambient operating temperature: –40 °C ... +70 °C; Ambient storage temperature: –40 °C ... +80 °C; Classifications: ECl@ss 5.0: 27273202; ECl@ss 5.1.4: 27273202; ECl@ss 6.0: 27273202; ECl@ss 6.2: 27273202; ECl@ss 7.0: 27273202; ECl@ss 8.0: 27273202; ECl@ss 8.1: 27273202; ECl@ss 9.0: 27273202; ECl@ss 10.0: 27273202; ECl@ss 11.0: 27273202; ETIM 5.0: EC002654; ETIM 6.0: EC002654; ETIM 7.0: EC002654; UNSPSC 16.0901: 41111938
