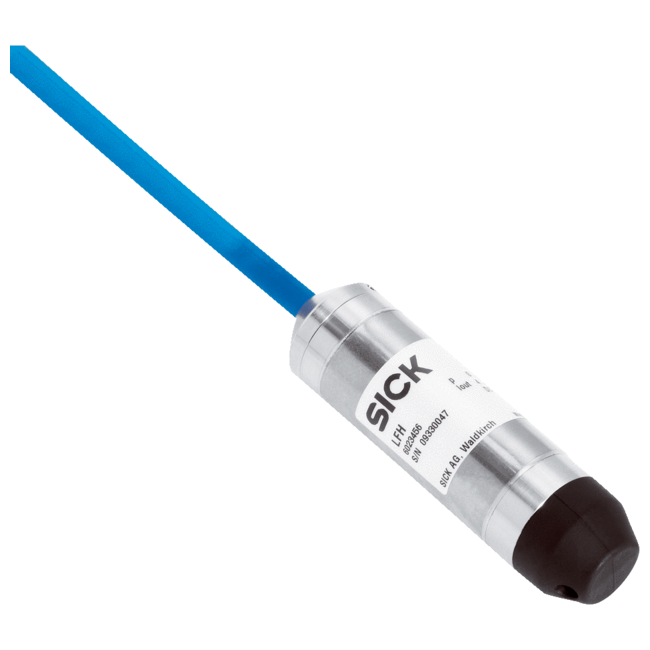

LFH-EW2X5G1AS05SV0 SICK6065106LFHEW2X5G1AS05SV0

Features: Medium: Fluids; Pressure type: Gauge pressure; Pressure unit: mH2O; Measuring range: 0 mH2O ... 2.5 mH2O; Process temperature: –10 °C ... +50 °C; Output signal: 4 mA ... 20 mA, 2-wire; Length of cable: 5 m; Mechanics/electronics: Wetted parts: Housing: Stainless steelPressure connection/diaphragm: CrNi steelProtection cap: PA; Connection type: PUR cable; Supply voltage: 10 V DC ... 30 V DC14 V DC ... 30 V DC with output signal 0 V ... 10 V (only with enhanced varient); Electrical safety: Protection class: IIIShort-circuit protection: QA towards MReverse polarity protection: L+ to MSurge protection: According to EN 61000-4-5 (1.5 J) optional for enhanced variant; Dielectric strength: 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault); CE-conformity: EMC directive: 2014/30/EU, EN 61 326-2-3; Weight sensor: 0.2 kg; Cable weight: 0.08 kg/m; Enclosure rating: IP68; Protection class III: ✔; Performance: Non-linearity: ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2; Accuracy: ≤ ± 0.25 % of the span for Enhanced variant p ≥ 0.25 bar; Non-repeatability: ≤ ± 0.1 % of the span; Long-term drift/one-year stability : ≤ ± 0.2 % of span (at reference conditions); Temperature coefficient in rated temperature range: Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar), Mean TC of span ≤ 0.2 % of span / 10 K; Rated temperature range: 0 °C ... +50 °C; Ambient data: Storage temperature: –30 °C ... +80 °C; Classifications: ECl@ss 5.0: 27200614; ECl@ss 5.1.4: 27200614; ECl@ss 6.0: 27200614; ECl@ss 6.2: 27200614; ECl@ss 7.0: 27200614; ECl@ss 8.0: 27200614; ECl@ss 8.1: 27200614; ECl@ss 9.0: 27200614; ECl@ss 10.0: 27200614; ECl@ss 11.0: 27200614; ETIM 5.0: EC001846; ETIM 6.0: EC001846; ETIM 7.0: EC001846; UNSPSC 16.0901: 41111950
