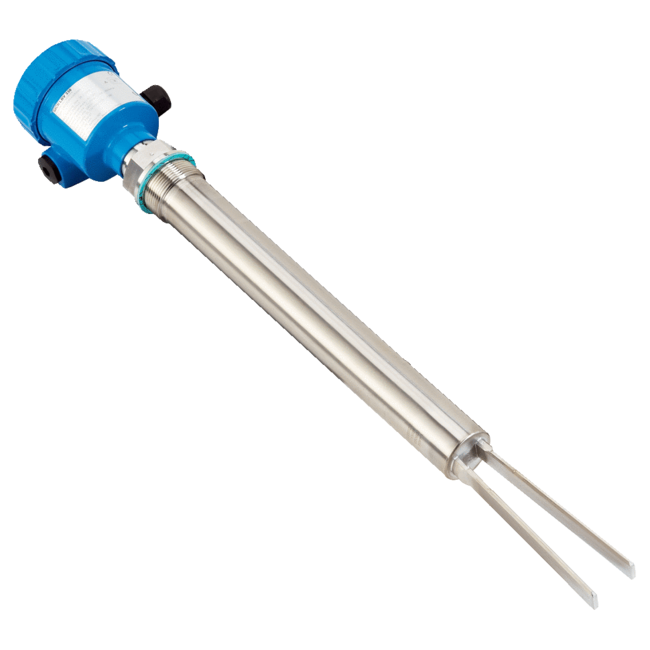

LBV330-GXAGDRVMX1500 SICK6068047LBV330GXAGDRVMX1500

Features: Medium: Bulk solids; Measurement: Switch; Probe length: 1,500 mm; Process pressure: –1 bar ... 25 bar; Process temperature: –50 °C ... +150 °C; Fill material density: ≥ 0.008; Particle size: < 10 mm; ATEX approval: ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db; Type examination: BVS 17 ATEX E 099; Performance: Accuracy of sensor element: ± 10 mm; Reproducibility: ≤ 5 mm; Response time: 500 ms when covered / 1,000 ms when uncovered; Electronics: Power consumption: 5 mA ... 30 mA; Initialization time: < 2 s; VDE protection class 1: ✔; Connection type: M20 x 1.5; Output signal: Double relay (DPDT); Supply voltage: Double relay (DPDT): 20 V DC ... 72 V DC / 20 V AC ... 253 V AC; Hysteresis: 10 mm; Output current: > 10 µA; < 3A AC, 1A DC; Inductive load: 750 VA 54 W; Capacitive load: 750 VA 54 W; Contact load: Min. 50 mW / max. 750 VA, 54 W; Enclosure rating: IP66 / IP67; Mechanics: Process connection: G 1½ A PN 25; Housing material: Stainless steel (investment casting) 316L; Sensor material: Stainless steel 1.4404; Ambient data: Ambient operating temperature: –40 °C ... +80 °C; Ambient storage temperature: –40 °C ... +80 °C; Classifications: ECl@ss 5.0: 27273202; ECl@ss 5.1.4: 27273202; ECl@ss 6.0: 27273202; ECl@ss 6.2: 27273202; ECl@ss 7.0: 27273202; ECl@ss 8.0: 27273202; ECl@ss 8.1: 27273202; ECl@ss 9.0: 27273202; ECl@ss 10.0: 27273202; ECl@ss 11.0: 27273202; ETIM 5.0: EC002654; ETIM 6.0: EC002654; ETIM 7.0: EC002654; UNSPSC 16.0901: 41111938
