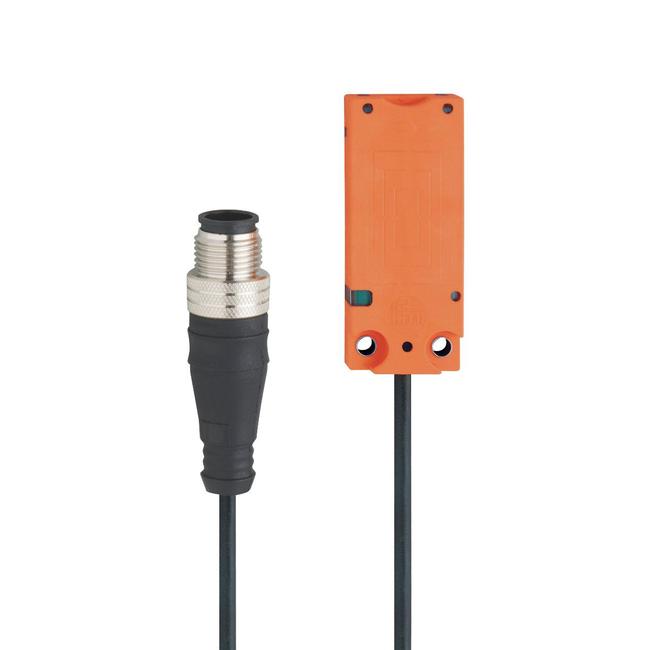

KQ5101 ifm ⍾ KQ-3120NFPKG/0,1M/US

Capacitive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Measuring principle : capacitive; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 10; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 12; Real sensing range Sr [mm] : 12 ± 10 %; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -20...20; Parameter setting options : only via IO-Link; Communication interface : IO-Link; Transmission type : COM1 (4,8 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9 CDV; Profiles : Smart Sensor; SIO mode : yes; Supported DeviceIDs : Type of operation: DeviceID | Default: 371; Ambient temperature [°C] : -25...80; Note on ambient temperature : for UL application: ...50 °C; Housing : rectangular; Mounting : non-flush mountable; Materials : PBT; TPE-U; stainless steel

Type

Capacitive sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 17 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65; IP 67; IP 69K

Weight

27.4 g

Dimensions

20 x 7 x 48 mm
