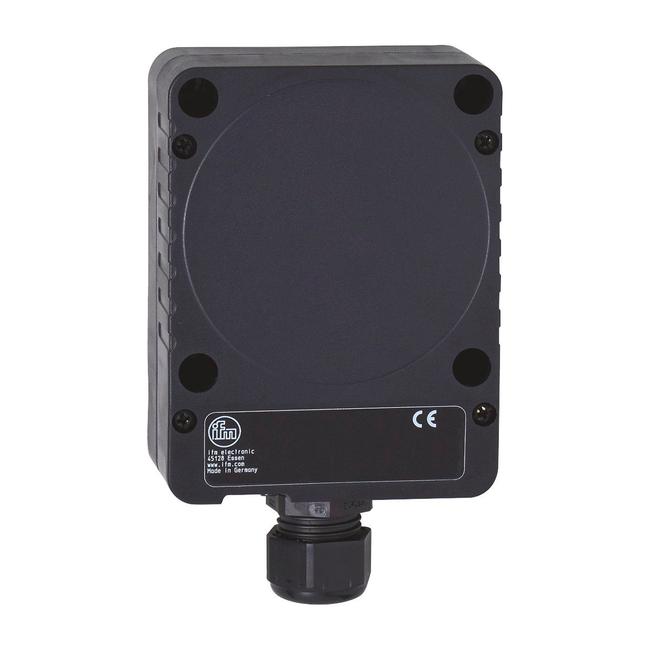

KD501A ifm ⍾ KDE3060-FPKG/NI/3D

Capacitive sensor; Operating voltage [V] : 10...36 DC; Protection class : III; Reverse polarity protection : yes; Measuring principle : capacitive; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 10; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 60; Sensing range adjustable : yes; Factory setting sensing range [mm] : 60; Real sensing range Sr [mm] : 60 ± 10 %; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -20...60; Increased immunity : yes; Housing : rectangular; Mounting : non-flush mountable; Materials : PPE modified; PA; Tightening torque [Nm] : housing screws: 0,9 Nm; screws: 4 Nm

Type

Capacitive sensors

Connection

terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65

Weight

279.5 g

Dimensions

105 x 80 x 42 mm
