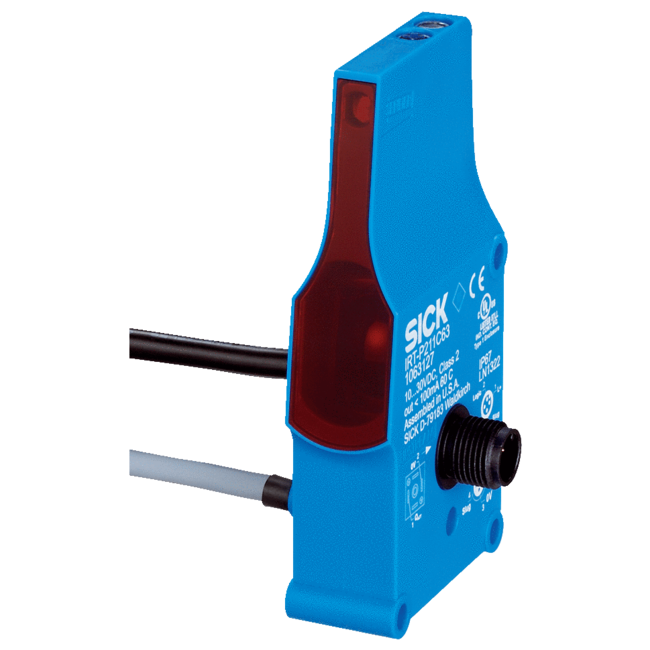

SICK IRT-P210C93S25

IRT-P210C93S25 SICK ⍾ 1083189 ⍾ IRTP210C93S25

Features: Actuator: Pneumatic, valve supplied separately; Max. number of sensors: Approx. 30 1)Approx. 50 2); Logical principle of operation: Single accumulation; Type of Release: Single release, block (slug) release; Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 20.6 mm x 99.2 mm x 48.9 mm; Sensing range max.: 60 mm ... 900 mm; Sensing range: 60 mm ... 900 mm; Type of light: Infrared light; Light source: LED 3); Light spot size (distance): Ø 20 mm (500 mm); Angle of dispersion: 7°; Adjustment: Potentiometer, 9 turns; Special applications: ZoneControl; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 20 mA 3); Switching output: PNP; Signal voltage PNP HIGH/LOW: Approx. VS – 0.5 V / 0 V; Output current Imax.: ≤ 100 mA; Response time: 2 ms; Switching frequency: 250 Hz; Connection type: Daisy chain cable, 2.5 m; Connection type for daisy chain: Cable with receptacle, M12, 4-pin 1.2 m; Circuit protection: A 4)C 5)D 6); Protection class: III; Weight: 175 g; Housing material: Plastic, ABS; Enclosure rating: IP67; Shock and vibration resistance: According to IEC 68; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E189383 & NRKH7.E189383; Mode of operation solenoid valve: HIGH to Drive; Connection type solenoid valve: Cable with MOLEX-connector 43025-0200; Pneumatic: Connection type solenoid valve: Cable with MOLEX-connector 43025-0200; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
