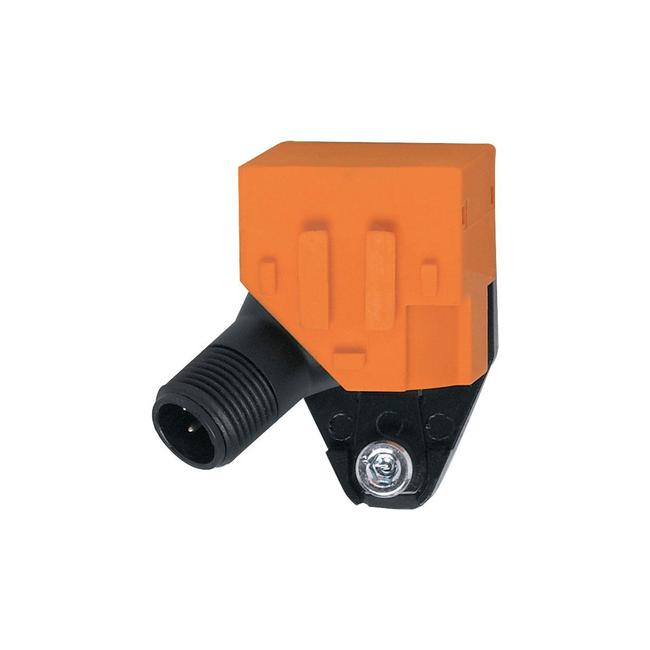

IO5016 ifm ⍾ IOW2010-ARKG/UP/US-100 RT

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 2; Max. leakage current [mA] : 0.6; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 250; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 10; Real sensing range Sr [mm] : 10 ± 10 %; Operating distance [mm] : 0...8.1; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : rectangular; Mounting : flush mountable; Materials : PA; Items supplied : head cap screw: 1 x M4 x 12

Type

Inductive sensors

Connection

Connector: 1 x M12; Locking: rotatable

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 1 x LED, red

Degree of protection

IP 67

Weight

50.5 g

Dimensions

26 x 26 x 43 mm
