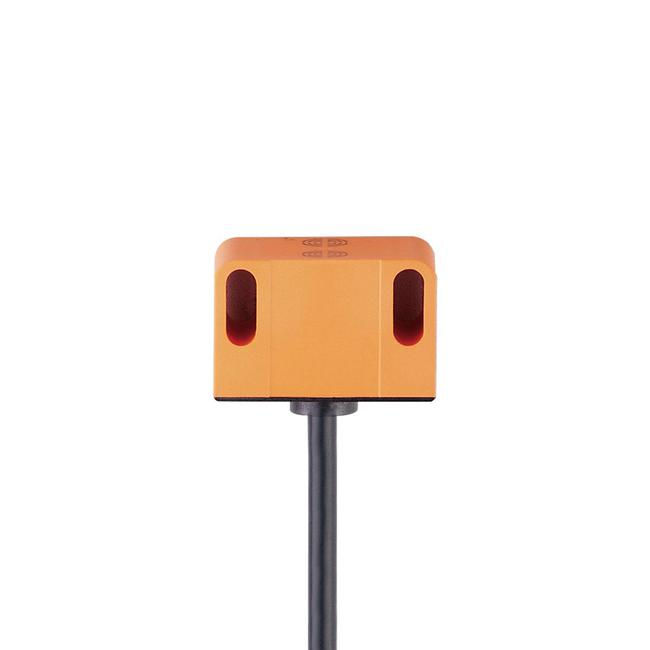

IN5377 ifm ⍾ IND3004UBPKG/0,3m/US-100-DPV
Inductive dual sensor for valve actuators; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : 2 x normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 1400; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 4; Real sensing range Sr [mm] : 4 ± 10 %; Operating distance [mm] : 0...3.25; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : rectangular; Mounting : non-flush mountable; Materials : PC
- Connection
- Connector: 1 x M12
- No. of inputs/outputs
- Number of analogue outputs: 1
- Current consumption
- < 15 mA
- Voltage supply
- 24 V
- Display
- switching status: 2 x LED, yellow
- Degree of protection
- IP 67
- Weight
- 74.5 g
- Dimensions
- 40 x 26 x 26 mm
