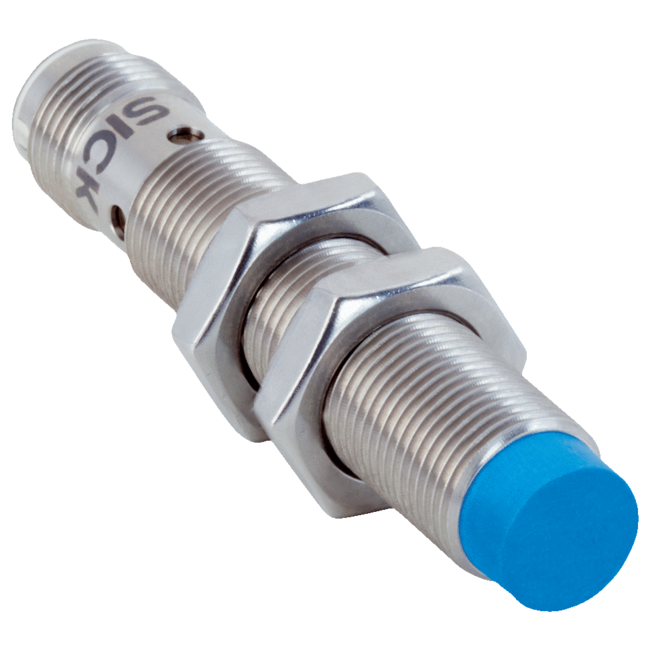

IMS12-08NPONC0S SICK1103203IMS1208NPONC0S

Features: Housing: Cylindrical thread design; Housing: Standard; Thread size: M12 x 1; Diameter: Ø 12 mm; Sensing range Sn: 8 mm; Safe sensing range Sa: 6.48 mm; Installation type: Non-flush; Switching frequency: 2,000 Hz; Connection type: Male connector M12, 4-pin 1); Switching output: PNP; Output function: NC; Electrical wiring: DC 3-wire; Enclosure rating: IP68 2)IP69K 3); Special features: Resistant to cleaning agents; Special applications: Mobile machines, Hygienic and washdown zones, Difficult application conditions; Mechanics/electronics: Supply voltage: 7.2 V DC ... 60 V DC; Ripple: ≤ 10 %; Voltage drop: ≤ 2.5 V 1); Current consumption: 10 mA 2); Time delay before availability: 100 ms; Hysteresis: 3 % ... 20 %; Reproducibility: ≤ 2 % 3); Temperature drift (of Sr): ± 10 %; EMC: Emitted interference and interference immunity in accordance with Motor Insurance Directive ECE-R10 Rev. 5: E1-Type approvalInterference immunity in accordance with DIN ISO 11452-2: 100 V/mAM vertical 20 MHz - 800 MHz; AM horizontal 200 MHz - 800 MHz; PM vertical/horizontal 800 MHz - 2.7 GHzConducted disturbances in accordance with ISO 7637-2 (pulse/severity/failure criterion 12 V/failure criterion 24 V): 1/IV/C/C, 2a/IV/A/A, 2b/IV/C/C, 3a/IV/A/A, 3b/IV/A/A, 4/IV/C/A, 5a/IV/B/B, 5b/IV/B/BEN 61000-4-2 ESD: 4 kV CD / 8 kV ADEN 61000-4-3 HF radiated: 10 V/mEN 61000-4-4 burst: 2 kVEN 61000-4-5 surge: 0,5 kV L-to-L, Ri: 2 OhmEN 61000-4-6 HF wire-bound: 10 V/m; Environmental test: Quick temperature change EN 60068-2-14, Na: TA = –25 °C, TB = 75 °C, t1 = 40 min, t2 = < 10 s, 300 cycles, Delta Sr ≤ 10%; Corrosion test: Salt spray test EN 60068-2-52: severity 5, 4 cycles; Continuous current Ia: ≤ 200 mA 4); Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: Vibration resistance EN 60068-2-6 Fc: 25 g peak (10 Hz ... 2,000 Hz) / –20 °C ... +50 °C, Shock resistance EN 60068-2-27 Ea: 100 g 11 ms; 3 shocks in every direction of the 3 coordinate axes / –40 °C ... +85 °C, Continuous shock resistance EN 60068-2-29 Eb: 40 g 3 ms rise, 7 ms fall / 5,000 shocks in every direction of the 3 coordinate axes / -20 °C ... +50 °C, Broadband noise EN 60068-2-64: 15 g rms (5 Hz ... 2,000 Hz) / 8 hours in every direction of the 3 coordinate axes / –40 °C ... +85 °C; Ambient operating temperature: –40 °C ... +100 °C; Housing material: Stainless steel V4A, DIN 1.4404 / AISI 316L; Sensing face material: Plastic, LCP; Housing length: 65 mm; Thread length: 43 mm; Tightening torque, max.: Typ. 20 Nm; Items supplied: Mounting nut, brass, nickel-plated (2x); Protection class: III; UL File No.: E181493; Safety-related parameters: MTTFD: 1,196 years; DCavg: 0%; Reduction factors: Note: The values are reference values which may vary; Stainless steel (V2A, 304): Approx. 0.67; Aluminum (Al): Approx. 0.42; Copper (Cu): Approx. 0.35; Brass (Br): Approx. 0.42; Installation note: Remark: Associated graphic see "Installation"; A: 12 mm; B: 24 mm; C: 12 mm; D: 24 mm; E: 16 mm; F: 64 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
