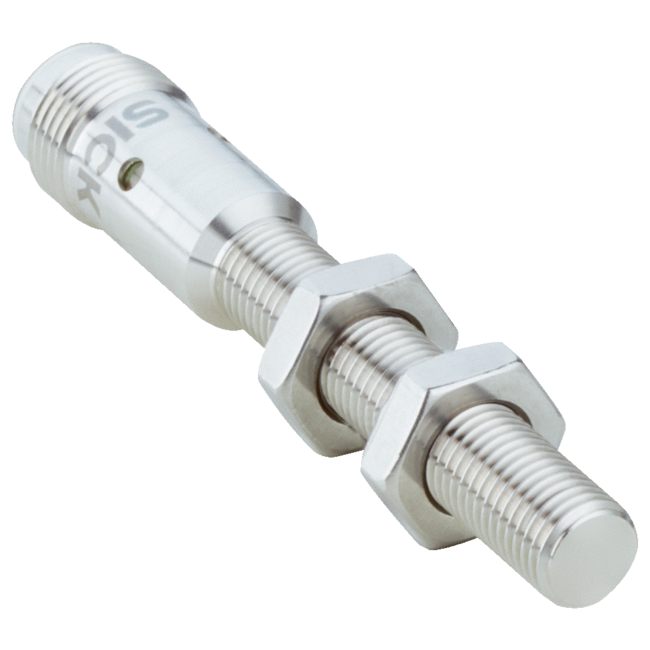

IMI08-02BPSNC0S SICK1093885IMI0802BPSNC0S

Features: Housing: Cylindrical thread design; Thread size: M8 x 1; Diameter: Ø 8 mm; Sensing range Sn: 2 mm; Safe sensing range Sa: 1.62 mm; Installation type: Flush; Switching frequency: 100 Hz; Connection type: Male connector M12, 4-pin; Switching output: PNP; Output function: NO; Electrical wiring: DC 3-wire; Enclosure rating: IP68, IP69K 1); Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents; Special applications: Hygienic and washdown zones, Difficult application conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 % 1); Voltage drop: ≤ 2 V 2); Current consumption: 10 mA 3); Time delay before availability: ≤ 200 ms; Hysteresis: 1 % ... 20 %; Reproducibility: ≤ 2 % 4); Temperature drift (of Sr): ≤ 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g; Ambient operating temperature: –25 °C ... +75 °C; Housing material: Stainless steel V4A, DIN 1.4404 / AISI 316L; Sensing face material: Stainless steel V4A, DIN 1.4404 / AISI 316L; Housing length: 70 mm; Thread length: 43 mm; Tightening torque, max.: ≤ 7 Nm; Items supplied: Mounting nut, V4A stainless steel (2x); Protection class: III; UL File No.: E181493; Safety-related parameters: MTTFD: 1,892 years; DCavg: 0%; Reduction factors: Note: The values are reference values which may vary; St37 steel (Fe): Approx. 1; Stainless steel (V2A, 304): Approx. 0.57; Aluminum (Al): Approx. 0.43; Copper (Cu): Approx. 0.36; Brass (Br): Approx. 0.51; Installation note: Remark: Associated graphic see "Installation"; B: 5 mm; C: 8 mm; D: 6 mm; F: 16 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
