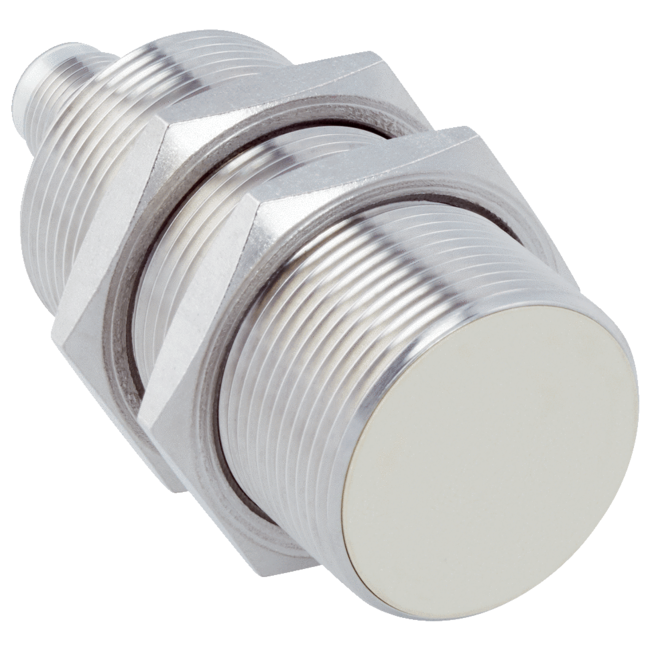

IMF30-15BPPNC0S SICK1076656IMF3015BPPNC0S

Features: Housing: Cylindrical thread design; Housing: Standard; Thread size: M30 x 1.5; Diameter: Ø 30 mm; Sensing range Sn: 15 mm; Safe sensing range Sa: 12.15 mm; Installation type: Flush; Switching frequency: 500 Hz; Connection type: Male connector M12, 4-pin 1); Switching output: PNP; Output function: Complementary; Electrical wiring: DC 4-wire; Enclosure rating: IP68 2)IP69K 3); Special features: Resistant to cleaning agents, IO-Link; Special applications: Hygienic and washdown zones, Difficult application conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 %; Voltage drop: ≤ 2 V 1); Current consumption: 10 mA 2); Hysteresis: 3 % ... 20 %; Reproducibility: ≤ 2 % 3) 4); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Power-up pulse: ≤ 5 ms; Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g; Ambient operating temperature: –40 °C ... +100 °C; Housing material: Stainless steel V4A, DIN 1.4404 / AISI 316L; Sensing face material: Plastic, LCP; Housing length: 70 mm; Thread length: 52 mm; Tightening torque, max.: Typ. 100 Nm; Items supplied: Mounting nut, V4A stainless steel (2x); Protection class: II 5); UL File No.: E181493; Communication interface: Communication interface: IO-Link V1.0; Communication Interface detail: COM2 (38,4 kBaud); Process data length: 1 Byte; Process data structure: Bit 0 = Sr reachedBit 1 = Sa reached; Reduction factors: Note: The values are reference values which may vary; Stainless steel (V2A, 304): Approx. 0.62; Aluminum (Al): Approx. 0.26; Copper (Cu): Approx. 0.17; Brass (Br): Approx. 0.27; Installation note: Remark: Associated graphic see "Installation"; B: 40 mm; C: 30 mm; D: 45 mm; F: 120 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
