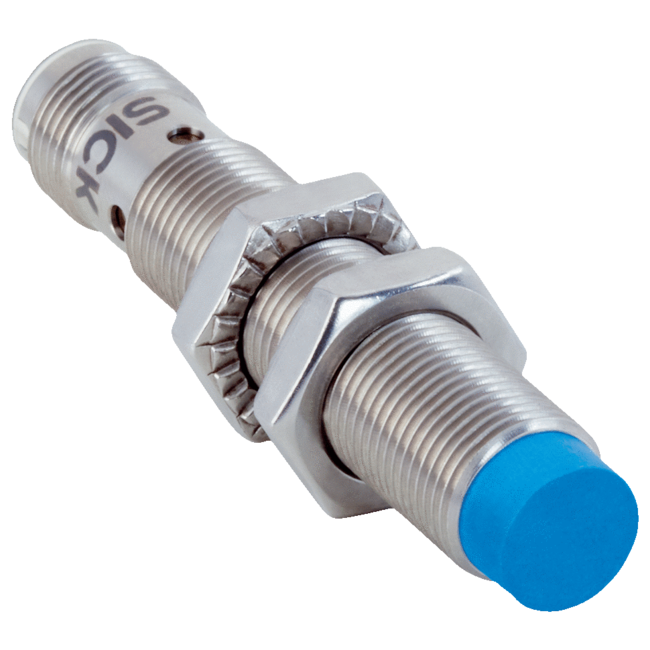

SICK IMB12-08NNPVC0S

IMB12-08NNPVC0S SICK ⍾ 1074362 ⍾ IMB1208NNPVC0S

Features: Housing: Cylindrical thread design; Housing: Standard; Thread size: M12 x 1; Diameter: Ø 12 mm; Sensing range Sn: 8 mm; Safe sensing range Sa: 6.48 mm; Installation type: Non-flush; Switching frequency: 2,000 Hz; Connection type: Male connector M12, 4-pin 1); Switching output: NPN; Output function: Complementary; Electrical wiring: DC 4-wire; Enclosure rating: IP68 2)IP69K 3); Special features: Resistant against coolant lubricants; Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 %; Voltage drop: ≤ 2 V 1); Current consumption: 10 mA 2); Hysteresis: 3 % ... 20 %; Reproducibility: ≤ 2 % 3) 4); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g; Ambient operating temperature: –40 °C ... +100 °C; Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303; Sensing face material: Plastic, LCP; Housing length: 65 mm; Thread length: 43 mm; Tightening torque, max.: Typ. 32 Nm 5); Items supplied: Mounting nut, V2A stainless steel, with locking teeth (2x); Protection class: II 6); UL File No.: E181493; Safety-related parameters: MTTFD: 2,016 years; DCavg: 0%; Reduction factors: Note: The values are reference values which may vary; St37 steel (Fe): 1; Stainless steel (V2A, 304): Approx. 0.67; Aluminum (Al): Approx. 0.42; Copper (Cu): Approx. 0.35; Brass (Br): Approx. 0.42; Installation note: Remark: Associated graphic see "Installation"; A: 12 mm; B: 24 mm; C: 12 mm; D: 24 mm; E: 16 mm; F: 64 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
