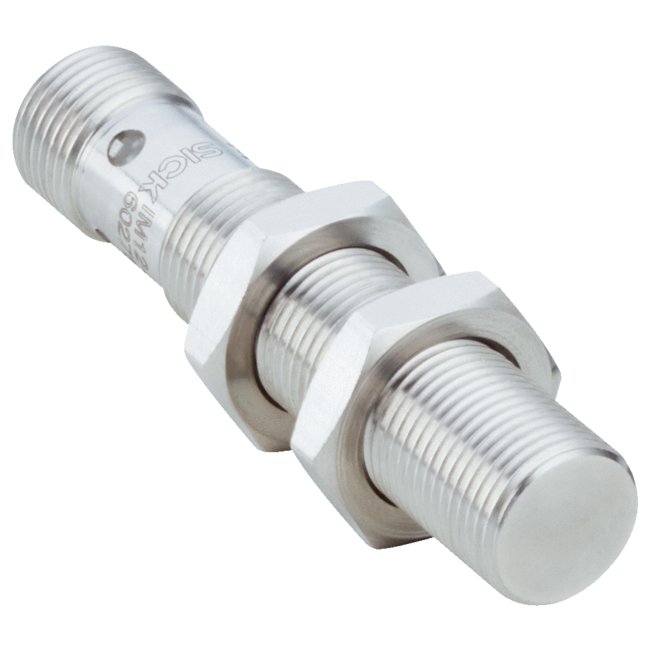

IM12-06BPS-VC1 SICK6068718IM1206BPSVC1

Features: Housing: Cylindrical thread design; Thread size: M12 x 1; Diameter: Ø 12 mm; Pressure resistance: ≤ 80 bar; Sensing range Sn: 6 mm; Safe sensing range Sa: 4.86 mm; Installation type: Flush; Switching frequency: 600 Hz; Connection type: Male connector M12, 4-pin; Switching output: PNP; Output function: NO; Electrical wiring: DC 3-wire; Enclosure rating: IP68, IP69K 1); Special features: Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link; Special applications: Zones with coolants and lubricants, Difficult application conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 20 % 1); Voltage drop: ≤ 2 V 2); Current consumption: 10 mA 3); Time delay before availability: ≤ 10 ms; Hysteresis: 1 % ... 15 %; Reproducibility: ≤ 5 % 4) 5); Temperature drift (of Sr): ≤ 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm; Ambient operating temperature: –25 °C ... +85 °C; Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303; Sensing face material: Stainless steel V2A, DIN 1.4305 / AISI 303; Housing length: 60 mm; Thread length: 41 mm; Tightening torque, max.: ≤ 20 Nm; Items supplied: Mounting nut, V2A stainless steel (2x)Washer, V2A stainless steel, with locking teeth (2x); Protection class: III; UL File No.: E191603; Communication interface: Communication interface: IO-Link V1.0; Communication Interface detail: COM2 (38,4 kBaud); Process data length: 1 Byte; Process data structure: Bit 0 = Sr reached; Process data structure A: Bit 1 = Sa reached; Reduction factors: Note: The values are reference values which may vary; St37 steel (Fe): Approx. 1; Stainless steel (V4A, 316L): Approx. 0.45 1); Aluminum (Al): Approx. 1; Copper (Cu): Approx. 0.85; Brass (Br): Approx. 1.3; Installation note: Remark: Associated graphic see "Installation"; B: 38 mm; C: 12 mm; D: 18 mm; F: 45 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
