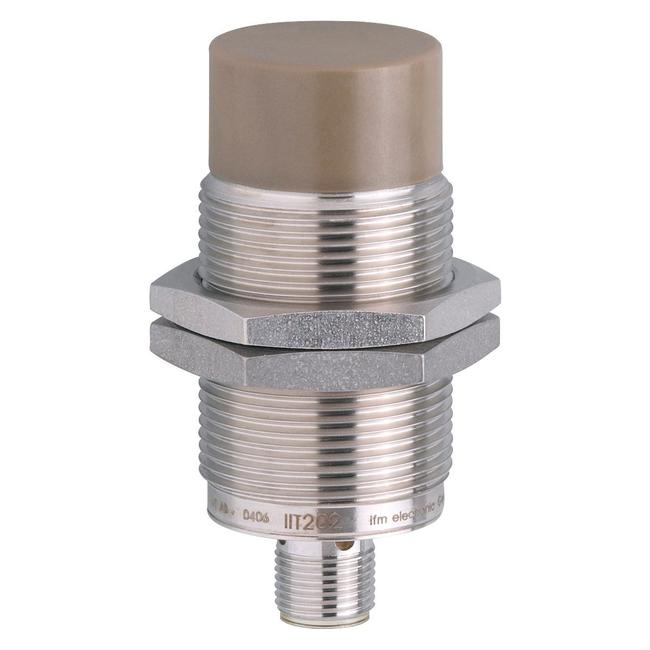

LS-104-AK

Inductive sensor; Operating voltage [V] : 20...140 AC/DC; Protection class : II; Reverse polarity protection : yes; Max. power-on delay time [ms] : 1000; Output function : normally open; Max. voltage drop switching output DC [V] : 5.5; Max. voltage drop switching output AC [V] : 5.5; Minimum load current [mA] : 5; Max. leakage current [mA] : 1; Permanent current rating of switching output AC [mA] : 80; (200 (...80 °C)); Permanent current rating of switching output DC [mA] : 80; (200 (...80 °C)); Short-time current rating of switching output [mA] : 1200; (20ms / 0,5Hz / 80 mA (> 80°C)); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 22; Real sensing range Sr [mm] : 22 ± 10 %; Operating distance [mm] : 0...17.82; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : 0...100; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : stainless steel (1.4404 / 316L); PEEK; Items supplied : lock nuts: 2; Connector: 1 x 1/2"; Contacts: gold-plated

Connection: Cable: 2 m, PUR; 2 x 0.34 mm²
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 10 mA
Voltage supply: 24 V
Display: switching status: 4 x 90° LED, yellow
Degree of protection: IP 68; IP 69K; ("COP")
Weight: 134.1 g
Dimensions: M30 x 1.5 / L = 70 mm
