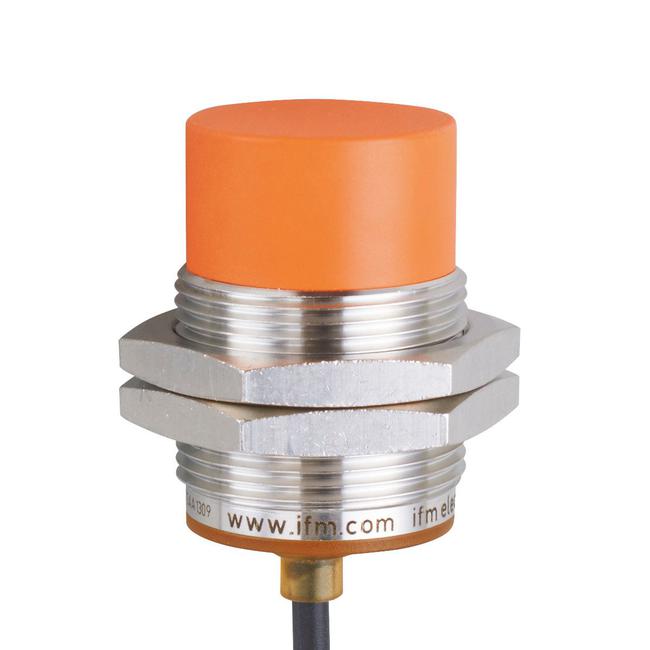

IIS243 ifm ⍾ IIB3022-BPKG/2M/PUR

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 22; Real sensing range Sr [mm] : 22 ± 10 %; Operating distance [mm] : 0...17.82; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -40...85; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated; Items supplied : lock nuts: 2

Type

Inductive sensors

Connection

Cable: 2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 10 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65; IP 66; IP 67; IP 68; IP 69K

Weight

134.7 g

Dimensions

M30 x 1.5 / L = 45 mm
