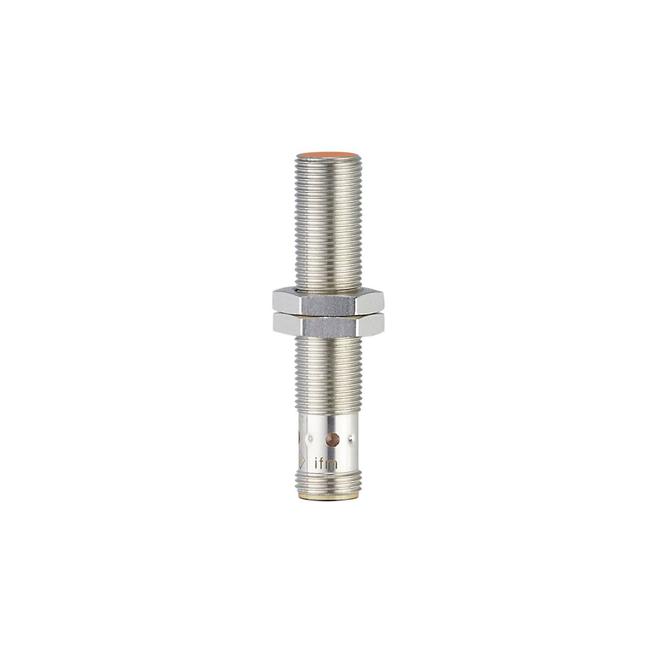

IF6123 ifm ⍾ IFK3004BFRKG/IO/US-104

Inductive sensor with IO-Link; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; (parameterisable); Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 600; Short-circuit protection : yes; Overload protection : yes; Switch point IO-Link [mm] : 0.7...3.51; (parameterisable); Measuring range IO-Link [mm] : 0.375...3.75; Correction factor : steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.5 / copper: 0.4; Hysteresis [% of Sr] : 3...15; Linearity error of analogue output [%] : ± 2 %; (of the final value of the measuring range); Repeatability analogue output [%] : ± 1 %; (of the final value of the measuring range); Temperature coefficient : of the final value of the measuring range; Temperature coefficient [%/K vom MEW] : ± 0,3; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9 CDV; Profiles : Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable; SIO mode : yes; Required master port type : A; Min. process cycle time [ms] : 3; Supported DeviceIDs : Type of operation: DeviceID | Default: 791; Ambient temperature [°C] : -40...85; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated; Items supplied : lock nuts: 2; Connector: 1 x M12

Type

Inductive sensors

Connection

Cable: 5 m, silicone; highly flexible

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 4 x LED, yellow | SIO mode | output stage supplied with current: LED, yellow lights | IO-Link mode | target in measuring range: LED, yellow lights

Degree of protection

IP 65; IP 66; IP 67; IP 68; IP 69K

Weight

28 g

Dimensions

M12 x 1 / L = 60 mm
