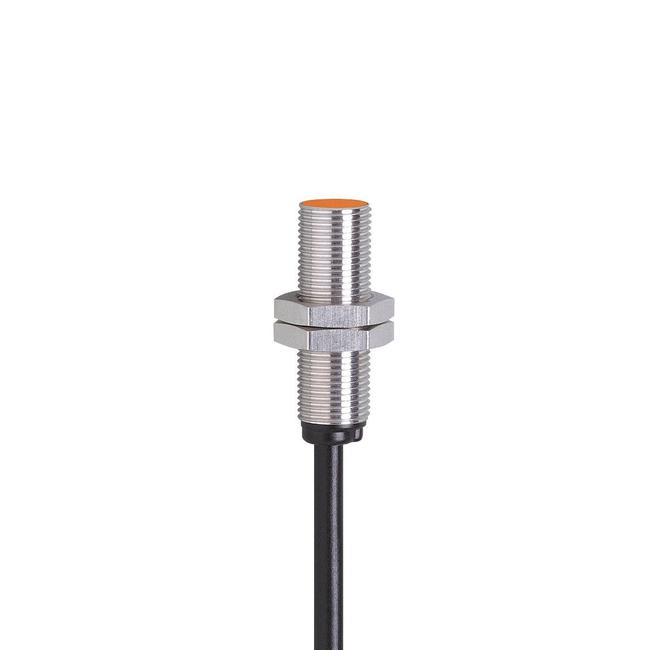

IF6038 ifm ⍾ IFB3002-BPKG/V4A/0,4M/ZH

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.6; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -20...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : stainless steel; sensing face: PBT

Type

Inductive sensors

Connection

Connector: 1 x flat-pin connector (4.8 x 0.5 mm)

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

20.9 g

Dimensions

M12 x 1 / L = 31.5 mm
