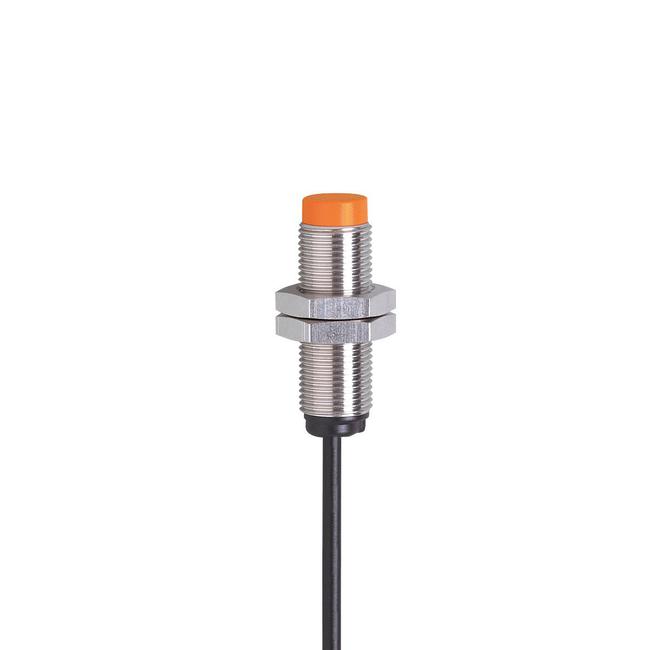

IF6001 ifm ⍾ IFB3004-BPKG/PULLDOWN 2 KOHM

Inductive sensor; Operating voltage [V] : 18...32 DC; Protection class : III; Reverse polarity protection : yes; Internal pull-down resistance [kΩ] : 2; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 125; (150 (...50 °C)); Short-time current rating of switching output [mA] : 150; Switching frequency DC [Hz] : 200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 4; Real sensing range Sr [mm] : 4 ± 10 %; Operating distance [mm] : 0...3.25; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M12 x 1; Materials : brass white bronze coated; sensing face: PC; Items supplied : lock nuts: 2

Type

Inductive sensors

Connection

Cable: 2 m, PVC; 3 x 0.34 mm²

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

93.7 g

Dimensions

M12 x 1 mm
