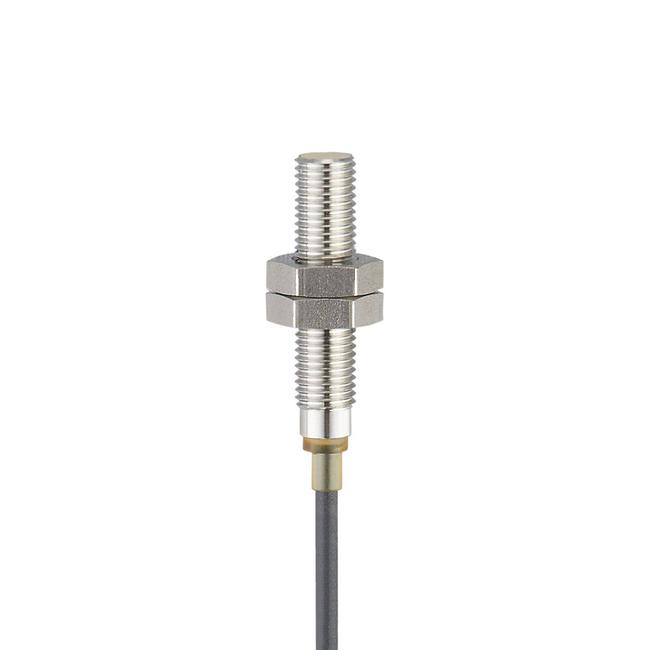

IES204 ifm ⍾ IEB3003BAPKG/V4A/K1/2M/PUR

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally closed; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 2000; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 3; Real sensing range Sr [mm] : 3 ± 10 %; Operating distance [mm] : 0...2.43; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Correction factor K = 1 : yes; Ambient temperature [°C] : -40...85; Housing : threaded type; Mounting : flush mountable; Thread designation : M8 x 1; Materials : stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L); Tightening torque [Nm] : A = 6 mm: 2 Nm; B: 5 Nm; Items supplied : lock nuts: 2

Connection: Cable: 2 m, PUR; 3 x 0.14 mm²
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 20 mA
Voltage supply: 24 V
Display: switching status: 1 x LED, yellow
Degree of protection: IP 65; IP 66; IP 67; IP 68; IP 69K
Weight: 45 g
Dimensions: M8 x 1 / L = 37.5 mm
