PUR RT

Ask about price and delivery time

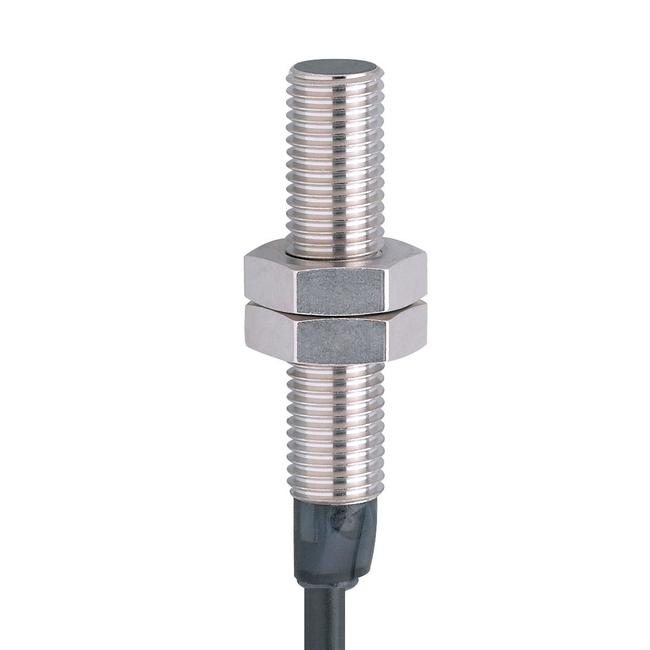

Inductive sensor; Operating voltage [V] : 10...55 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 4.5; Minimum load current [mA] : 5; Max. leakage current [mA] : 0.6; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.62; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : flush mountable; Thread designation : M8 x 1; Materials : brass white bronze coated; Items supplied : lock nuts: 2

Type: Inductive sensors
Connection: Cable: 2 m, PUR; 2 x 0.14 mm²
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 10 mA
Voltage supply: 24 V
Display: switching status: 1 x LED, red
Degree of protection: IP 67
Weight: 45.4 g
Dimensions: M8 x 1 / L = 42 mm
