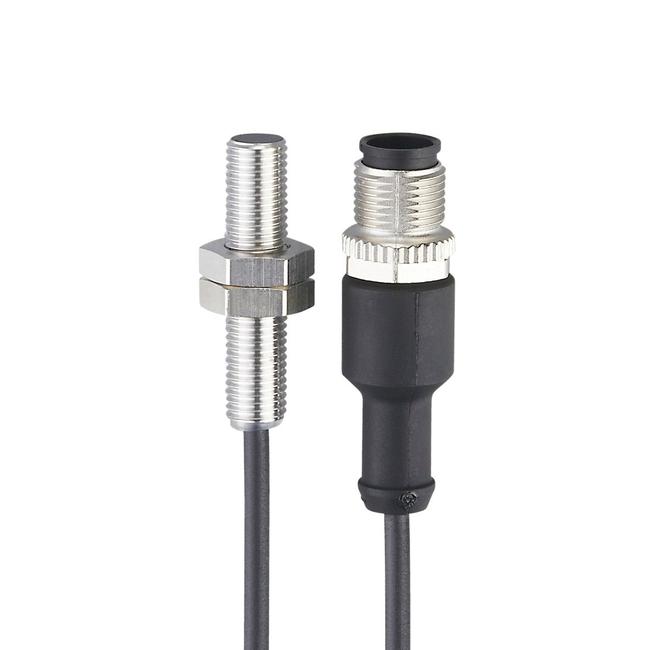

IE5325 ifm ⍾ IEB3002BAPKG/0,8M/FH/US100DPOR

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally closed; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Short-time current rating of switching output [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.62; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M8 x 1; Materials : brass white bronze coated; LCP; Tightening torque [Nm] : A = 5 mm: 1 Nm; B: 2 Nm; Items supplied : lock nuts: 2

Type

Inductive sensors

Connection

Connector: 1 x M12; Locking: rotatable

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

15; (24 V) mA

Voltage supply

24 V

Display

switching status: 1 x LED, red

Degree of protection

IP 67

Weight

39.4 g

Dimensions

M8 x 1 mm
