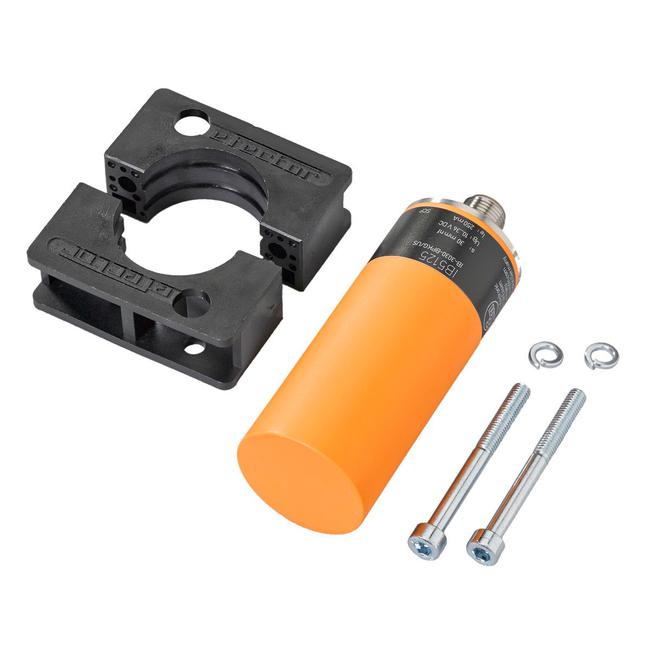

IB5125 ifm ⍾ IB-3030-BPKG/US-104-DPS

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 350; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 30; Real sensing range Sr [mm] : 30 ± 10 %; Operating distance [mm] : 0...24.3; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : cylindrical; Mounting : non-flush mountable; Materials : housing: PBT; sensing face: PBT orange; clamp: PBT black; Items supplied : Mounting clamps: 1

Type

Inductive sensors

Connection

Connector: 1 x M12; Locking: brass, white bronze coated; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

246.5 g

Dimensions

Ø 34 / L = 95 mm
