ifm I7R211

I7R211 ifm ⍾ I7R3020-FPKG/DY/US-100-IPF

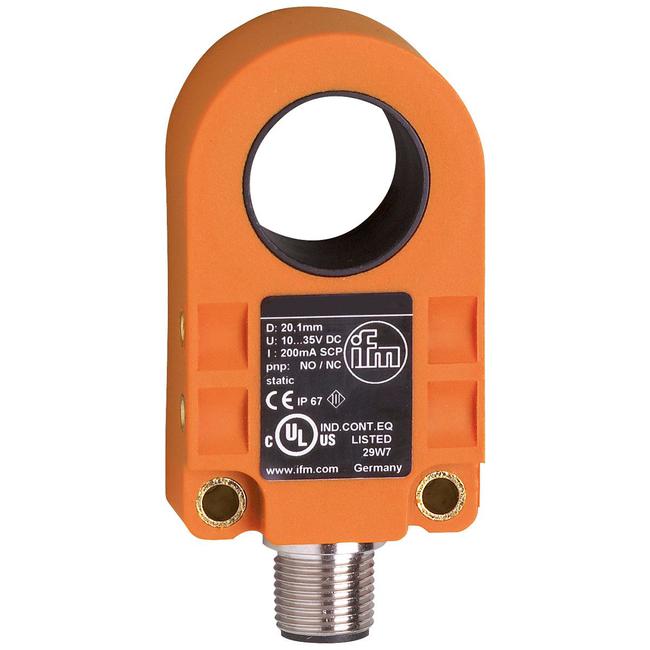

Inductive ring sensor; Operating voltage [V] : 10...35 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2; Permanent current rating of switching output DC [mA] : 200; Short-circuit protection : yes; Overload protection : yes; Resolution of steel ball (diameter) [mm] : 1; Max. part speed [m/s] : 35; Pulse stretching [ms] : 0.1...150; Pulse stretching adjustable : yes; Max. fall time [ms] : 0.2; Response time [ms] : < 0.2; Ambient temperature [°C] : -25...70; Housing : circular; Inside diameter [mm] : 20.1; Materials : housing: PA; ring: POM

Connection
Connector: 1 x M12
No. of inputs/outputs
Number of analogue outputs: 1
Current consumption
< 20 mA
Voltage supply
24 V
Display
switching status: 1 x LED, yellow
Degree of protection
IP 67
Weight
56.8 g
Dimensions
60 x 35 x 20 mm
