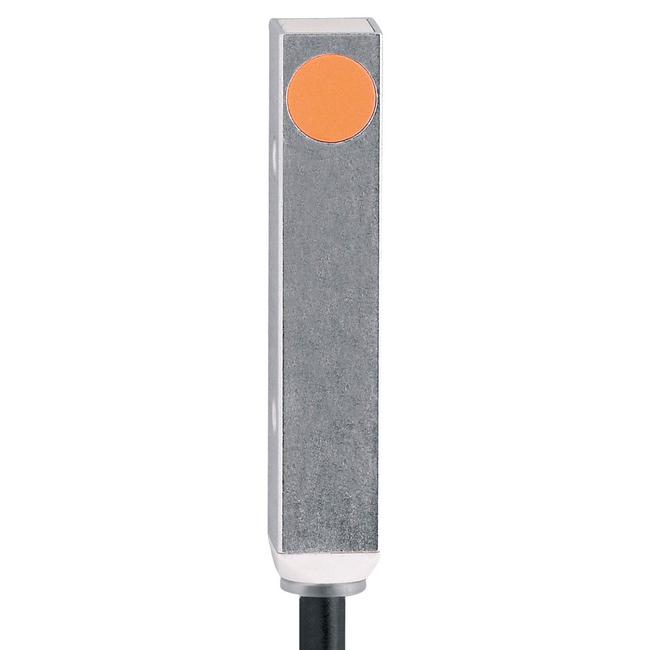

I35001 ifm ⍾ ILA2002-AROG/OBEN/UP RT

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 4.7; Minimum load current [mA] : 4; Max. leakage current [mA] : 0.8; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 2000; Short-circuit protection : no; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.6; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -25...70; Housing : rectangular; Mounting : flush mountable; Materials : brass white bronze coated; LCP

Type

Inductive sensors

Connection

Cable: 2 m, PVC; 3 x 0.14 mm²

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

15; (24 V) mA

Voltage supply

24 V

Display

switching status: 1 x LED, red

Degree of protection

IP 65

Weight

61 g

Dimensions

40 x 8 x 8 mm
