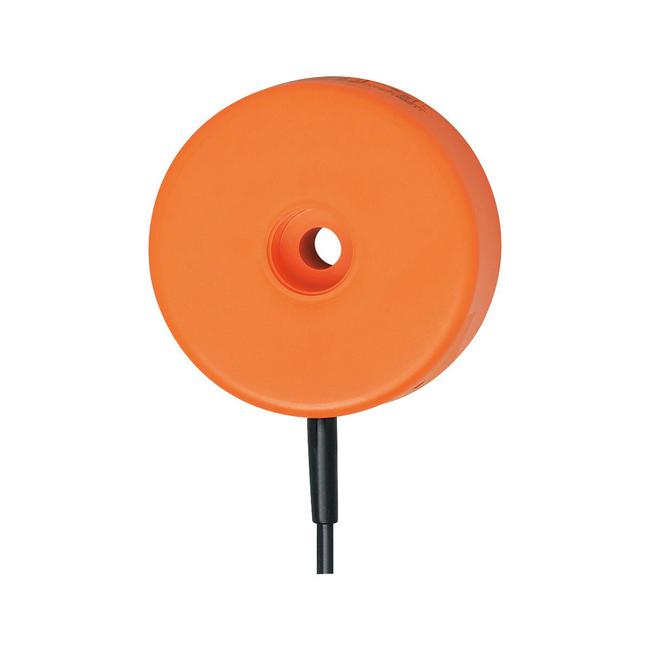

I12001 ifm ⍾ SIT-2070-ABOW
Inductive area sensor; Frequency AC [Hz] : 47...63; Operating voltage [V] : 90...250 AC; Protection class : II; Reverse polarity protection : no; Output function : normally open; Max. voltage drop switching output AC [V] : 11; Minimum load current [mA] : 15; Max. leakage current [mA] : 6; Permanent current rating of switching output AC [mA] : 200; (250 (...50 °C)); Short-time current rating of switching output [mA] : 1500; (10 ms / 0,5 Hz); Switching frequency AC [Hz] : 5; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 20...70; Sensing range adjustable : yes; Factory setting sensing range [mm] : 70; Real sensing range Sr [mm] : 70 ± 10 %; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : < 15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -20...70; Housing : cylindrical; Mounting : non-flush mountable; Materials : PBT; Items supplied : screws: 1
- Connection
- Cable: 2 m, PVC; 2 x 0.5 mm²
- No. of inputs/outputs
- Number of analogue outputs: 1
- Current consumption
- < 30 mA
- Voltage supply
- 24 V
- Display
- switching status: 1 x LED, yellow
- Degree of protection
- IP 65
- Weight
- 509.5 g
- Dimensions
- Ø 100 / L = 40 mm
