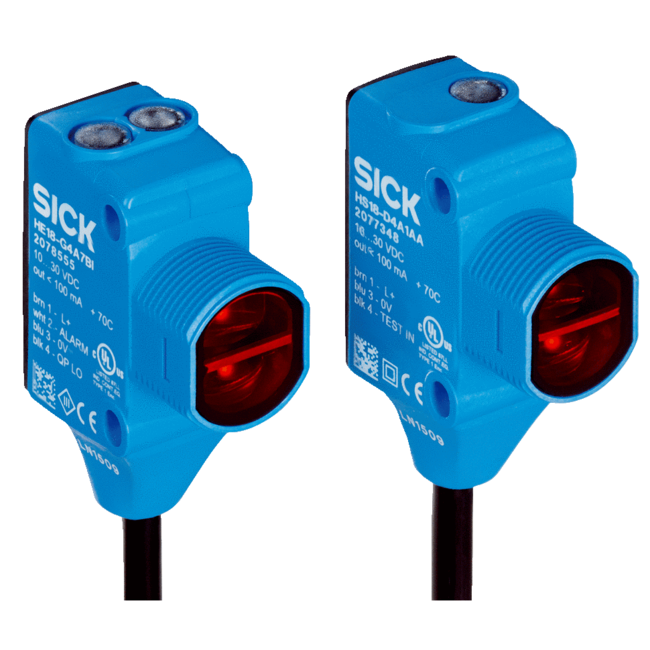

HSE18-P2B2BA SICK1084438HSE18P2B2BA

Features: Sensor/ detection principle: Through-beam photoelectric sensor; Dimensions (W x H x D): 16.2 mm x 45.5 mm x 31.8 mm; Housing design (light emission): Hybrid; Thread diameter (housing): M18; Mounting system type: M18, nose / side (24.1 … 25.4 mm); Housing color: Blue; Sensing range max.: 0 m ... 25 m; Sensing range: 0 m ... 20 m; Type of light: Visible red light; Light source: PinPoint LED 1); Light spot size (distance): 400 mm x 200 mm (10 m); Wave length: 631 nm; AdjustmentPotentiometer, rightNonePotentiometer, leftNone: Adjustment; Special features: Signal strength light bar; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: < 5 Vpp 1); Current consumption: 20 mA 2); Switching output: PNP; Switching mode: Light switching; Switching output detailSwitching output Q1PNP, Light switchingSwitching output Q2Not connected: Switching output detail; Output current Imax.: ≤ 100 mA; Response time: ≤ 0.5 ms 3); Switching frequency: 1,000 Hz 4); Connection type: Cable with connector M8, 3-pin, 150 mm; Cable material: PVC; Conductor cross-section: 0.2 mm²; Circuit protection: A 5)B 6)D 7); Protection class: III; Weight: 18 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP67IP69K; Items supplied: Mounting nut (1x), M18, plastic, black, flat; EMC: EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.); Ambient operating temperature: –40 °C ... +70 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: E189383; Classifications: ECl@ss 5.0: 27270901; ECl@ss 5.1.4: 27270901; ECl@ss 6.0: 27270901; ECl@ss 6.2: 27270901; ECl@ss 7.0: 27270901; ECl@ss 8.0: 27270901; ECl@ss 8.1: 27270901; ECl@ss 9.0: 27270901; ECl@ss 10.0: 27270901; ECl@ss 11.0: 27270901; ETIM 5.0: EC002716; ETIM 6.0: EC002716; ETIM 7.0: EC002716; UNSPSC 16.0901: 39121528; Connection/Pin assignment: Connection type: Cable with connector M8, 3-pin, 150 mm; Connection type DetailCable materialPVCConductor cross-section0.2 mm²: Connection type Detail; Pin assignment senderBN 1+ (L+)BU 3- (M)BK 4Test IN: Pin assignment sender; Pin assignment receiverBN 1+ (L+)BU 3- (M)BK 4Q: Pin assignment receiver
