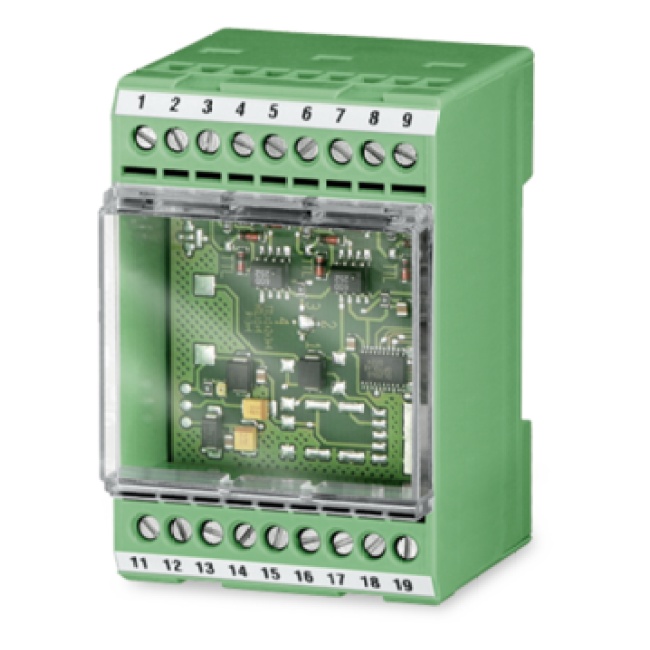

HEAG 151 Baumer ⍾ 11087115 ⍾ HEAG151
Signal Processing Unit: TTL to TTL signal level shifter, signal isolation, signal regeneration, voltage supply 5 VDC, consumption ≤5 mA, output load current HTL 60mA/100mA, TTL 25mA/75mA, dimensions 50x75x55 mm, IP20, -20...+50 °C, DIN rail mounting.
- Type
- Signal processing
 |
Signal Processing Digital Converter (Optocoupler Transmitter) - Technical Data Sheet (en) Size: 554 KB |
Download |
