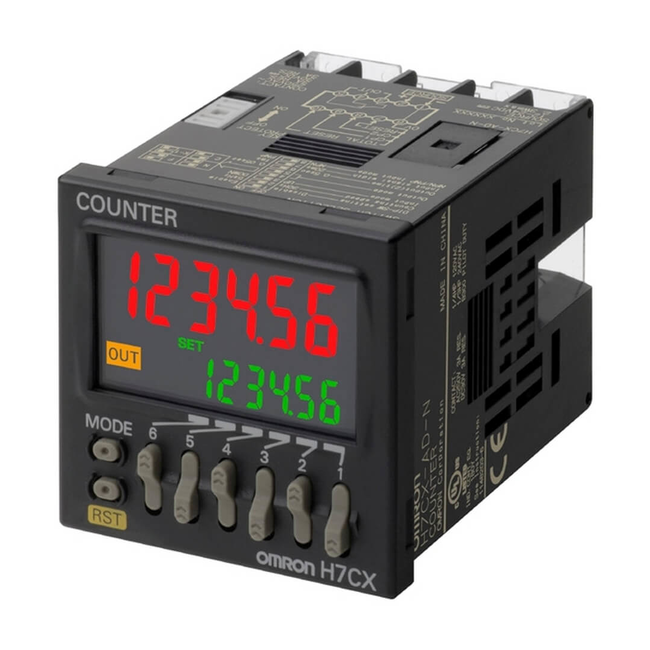

H7CX-AUSD1-N Omron ⍾ 311859 ⍾ H7CXAUSD1N
Counter, DIN48x48mm, IP66, 6 preset & 6 actual count digits, multifunction: 1-stage/2-stage/total/batch/ dual/tachometer, 2x 100mA 30VDC NPN transistor outputs, 12-24VDC/24VAC supply, 12 VDC aux supply, includes color change display function
- Type
- Pre-set counters
- Customs tariff number
- 9029100090
- Expected origin
- CN
- Weight
- 0.188 kg
 |
m079 h7cx- -n multifunction counter tachometer datasheet en Size: 8.21 MB |
Download |
