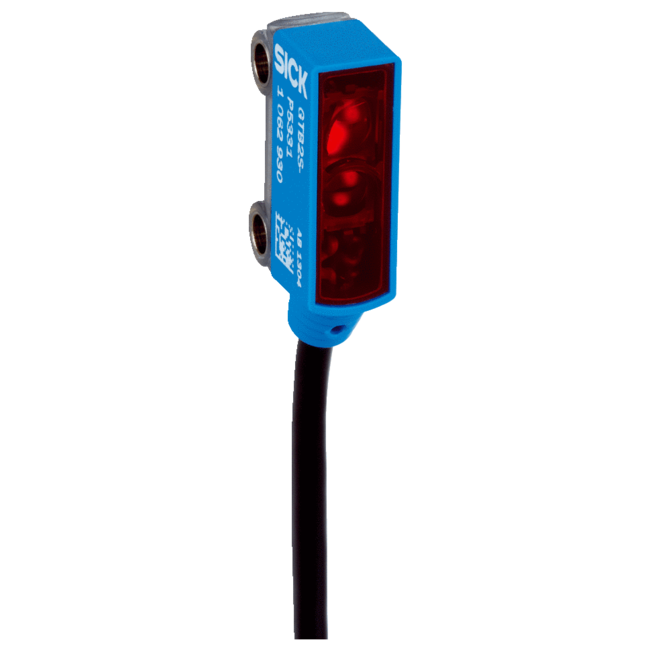

GTB2S-N1311 SICK1062840GTB2SN1311

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 7.7 mm x 21.8 mm x 13.5 mm; Housing design (light emission): Rectangular; Sensing range max.: 1 mm ... 18 mm 1); Sensing range: 4 mm ... 15 mm 2); Background suppression typ. from: 20 mm; Type of light: Visible red light; Light source: PinPoint LED 3); Light spot size (distance): Ø 2 mm (8 mm); Wave length: 640 nm; Adjustment: None; Special applications: Detecting small objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp 2); Current consumption: 20 mA 3); Switching output: NPN; Switching mode: Light switching; Output current Imax.: < 50 mA; Response time: < 0.6 ms 4); Switching frequency: 800 Hz 5); Connection type: Cable, 3-wire, 2 m 6); Cable material: PVC; Cable diameter: Ø 3 mm; Circuit protection: A 7)C 8)D 9); Weight: 33.7 g; Housing material: Plastic, ABS; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –25 °C ... +50 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493; Safety-related parameters: MTTFD: 3,378 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
