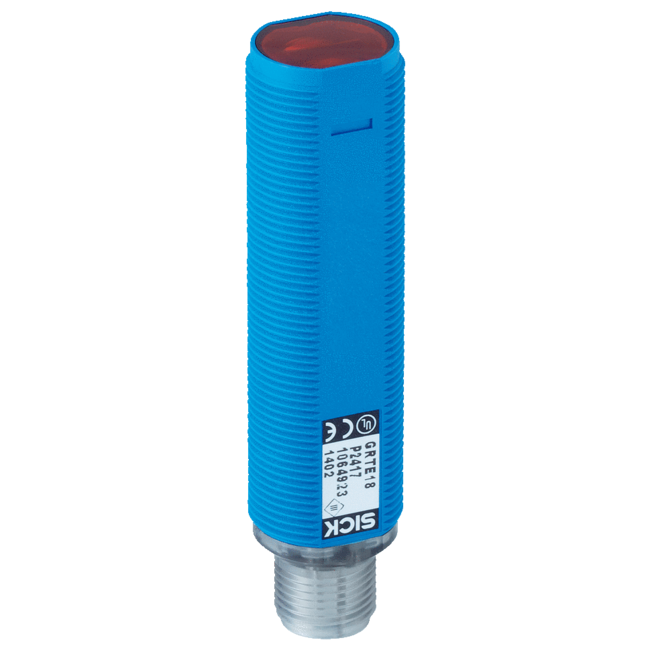

GRTE18-P2447 SICK1066546GRTE18P2447

Features: Sensor/ detection principle: Photoelectric proximity sensor, Energetic; Dimensions (W x H x D): 18 mm x 18 mm x 73.5 mm; Housing design (light emission): Cylindrical; Thread diameter (housing): M18 x 1; Optical axis: Axial; Sensing range max.: 5 mm ... 550 mm 1); Sensing range: 10 mm ... 400 mm 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 9 mm (400 mm); Wave length: 650 nm; Adjustment: Potentiometer; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ± 5 Vpp 2); Current consumption: 30 mA; Switching output: PNP; Output function: Complementary; Switching mode: Light/dark switching; Signal voltage PNP HIGH/LOW: VS - (≤ 3 V) / approx. 0 V; Output current Imax.: 100 mA 3); Response time: < 1,000 µs 4); Switching frequency: 500 Hz 5); Connection type: Male connector M12, 4-pin; Circuit protection: A 6)B 7)D 8); Protection class: III; Housing material: Plastic, ABS; Optics material: Plastic, PMMA; Enclosure rating: IP67; Items supplied: Fastening nuts (2 x); EMC: EN 60947-5-2; Ambient operating temperature: –25 °C ... +55 °C 9); Ambient storage temperature: –40 °C ... +70 °C; UL File No.: E348498; Classifications: ECl@ss 5.0: 27270903; ECl@ss 5.1.4: 27270903; ECl@ss 6.0: 27270903; ECl@ss 6.2: 27270903; ECl@ss 7.0: 27270903; ECl@ss 8.0: 27270903; ECl@ss 8.1: 27270903; ECl@ss 9.0: 27270903; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC001821; ETIM 6.0: EC001821; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
