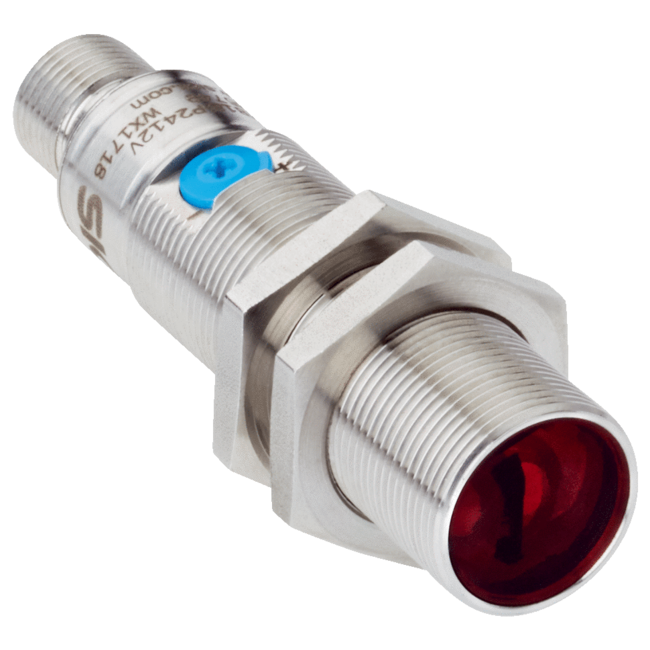

GRTB18-P2412V SICK1085749GRTB18P2412V

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 18 mm x 18 mm x 73.5 mm; Housing design (light emission): Cylindrical; Housing length: 73.5 mm; Thread length: 49.3 mm; Thread diameter (housing): M18 x 1; Optical axis: Axial; Sensing range max.: 3 mm ... 300 mm 1); Sensing range: 20 mm ... 150 mm 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 7 mm (100 mm); Wave length: 650 nm; Adjustment: Potentiometer, 270°; Special applications: Hygienic and washdown zones; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ± 5 Vpp 2); Power consumption: 30 mA; Switching output: PNP; Output function: Complementary; Switching mode: Light/dark switching 3); Signal voltage PNP HIGH/LOW: VS - (≤ 3 V) / approx. 0 V; Output current Imax.: 100 mA 4); Response time: < 500 µs 5); Switching frequency: 1,000 Hz 6); Connection type: Male connector M12, 4-pin; Circuit protection: A 7)B 8)D 9); Protection class: III; Weight: 65 g; Housing material: Stainless steel, Stainless steel V4A (1.4404, 316L); Optics material: Plastic, PMMA; Tightening torque, max.: 90 Nm; Enclosure rating: IP67IP68 10)IP69K 11); Items supplied: Fastening nuts (2 x); EMC: EN 60947-5-2; Ambient operating temperature: –25 °C ... +55 °C 12); Ambient storage temperature: –30 °C ... +75 °C; UL File No.: E348498; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
