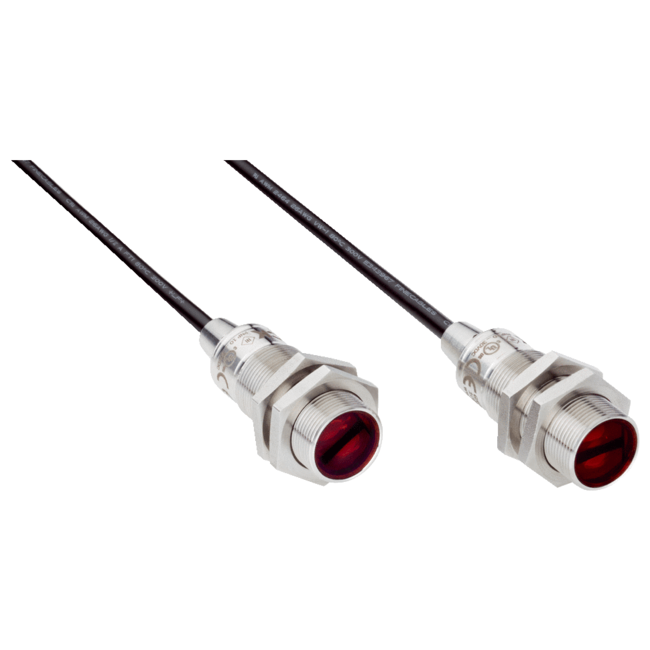

GRSE18S-N1121V SICK1085783GRSE18SN1121V

Features: Sensor/ detection principle: Through-beam photoelectric sensor; Dimensions (W x H x D): 18 mm x 18 mm x 55.9 mm; Housing design (light emission): Cylindrical; Housing length: 55.9 mm; Thread length: 31.7 mm; Thread diameter (housing): M18 x 1; Optical axis: Axial; Sensing range max.: 0 m ... 15 m; Sensing range: 0 m ... 10 m; Type of light: Infrared light; Light source: LED 1); Light spot size (distance): Ø 420 mm (10 m); Wave length: 850 nm; Adjustment: None; Special applications: Hygienic and washdown zones; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ± 5 Vpp 2); Power consumption: 30 mA; Switching output: NPN; Output function: Complementary; Switching mode: Light/dark switching 3); Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V; Output current Imax.: 100 mA 4); Response time: < 500 µs 5); Switching frequency: 1,000 Hz 6); Connection type: Cable, 4-wire, 2 m 7); Cable material: PVC; Conductor cross-section: 0.14 mm²; Cable diameter: 4.8 mm; Circuit protection: A 8)B 9)D 10); Protection class: III; Weight: 190 g; Housing material: Stainless steel, Stainless steel V4A (1.4404, 316L); Optics material: Plastic, PMMA; Tightening torque, max.: 90 Nm; Enclosure rating: IP67IP68 11)IP69K 12); Items supplied: Fastening nuts (4 x); EMC: EN 60947-5-2; Test input: Sender OFF at "Test" 0 V; Ambient operating temperature: –25 °C ... +55 °C 13); Ambient storage temperature: –30 °C ... +75 °C; UL File No.: NRKH.E348498 & NRKH7.E348498; Part number of individual components: 2091201 GRS18S-D1121V 2091358 GRE18S-N1111V; Classifications: ECl@ss 5.0: 27270901; ECl@ss 5.1.4: 27270901; ECl@ss 6.0: 27270901; ECl@ss 6.2: 27270901; ECl@ss 7.0: 27270901; ECl@ss 8.0: 27270901; ECl@ss 8.1: 27270901; ECl@ss 9.0: 27270901; ECl@ss 10.0: 27270901; ECl@ss 11.0: 27270901; ETIM 5.0: EC002716; ETIM 6.0: EC002716; ETIM 7.0: EC002716; UNSPSC 16.0901: 39121528
